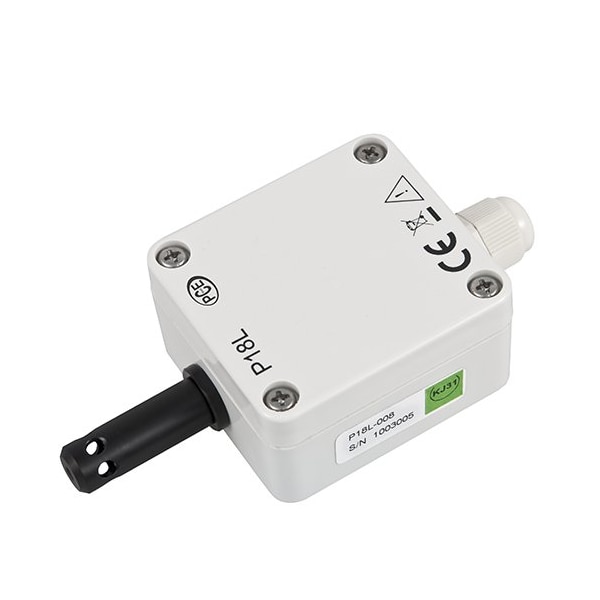

Temperature/humidity transducer, 4-20 mA output, -4 to 140 deg F and 0-100% RH in IP65 housing
Mfr # PCE-P18L
Zoro # G622432422
product price:Â $207.99
/ea
Free Shipping & Returns
Key Features
Output Current
4-20 mA
Hysteresis
± 1% RH
Length
1.4 in
Performance
<1.5 W
Setting The Output Size
Via Dip-Switch
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PCE-P18L
Zoro #
G622432422
UPC #
-
Country of Origin
Poland
Dimensions
Length
1.4 in
Setting The Output Size
Via Dip-Switch
Width
2.3 in
Details
Output Current
4-20 mA
Hysteresis
± 1% RH
Performance
<1.5 W
Supply Voltage
19V to 30V DC
Description/Special Features
Sensor for temperature and humidity, 4 to 20 mA output, Easy wall mounting, For permanent monitoring, Various filters available, Small size
Application
To Monitor Humidity and Temperature
Includes
1 x Manual
Temperature Effect
±25% / 10°C / 18°F
Humidity Measuring Range
0 to 100% RH
Humidity Accuracy
±2% (in the range 10% to 90% RH), ±3% (remaining range)
Temperature Accuracy
±0.5% of measuring range
Max. Connectable Resistor at The Output
≤500 Ω
Temperature Measuring Range
20 to 60°C / 68 to 140°F, -20 to 60°C / -4 to 140°F
For Use With
To Monitor Humidity and Temperature
Description
/ The humidity sensor was developed and constructed for the permanent monitoring of temperature or humidity. The compact dimensions of the humidity sensor are the characteristics of this instrument. The measurement of the temperature and humidity is via a semiconductor component. Internally, the physical quantities to be measured are converted toa 4 ... 2 mA standard signal. The power of this measuring instrument isconnected to a DC voltage into a current loop and is thus ideally suited fordisplayswith transmitter power supply. But it can also be connected to the paperless recorder for long-term monitoring of environmentalconditions.
