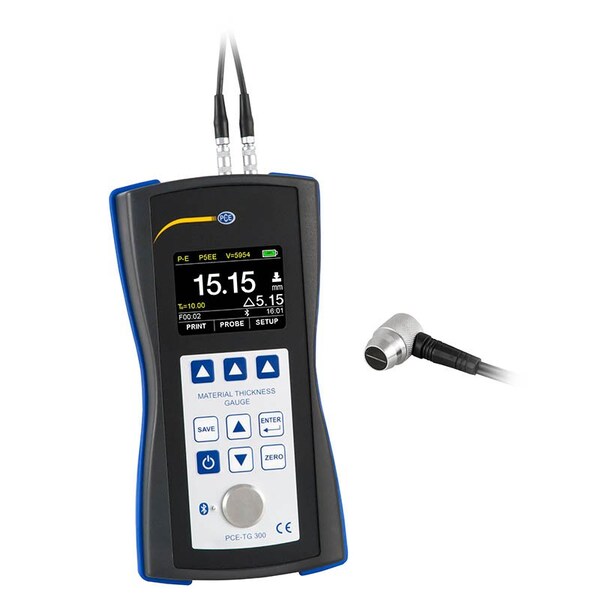

Ultrasonic Material Thickness Tester, Up to 600 mm (Discontinued)
- Mfr # PCE-TG 300
- Zoro # G804853816
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PCE-TG 300
Zoro #
G804853816
UPC #
4250348719652
Country of Origin
Germany
Dimensions
Cord Length
7.7
Details
Includes
Thickness Gauge Console, Sensor P5EE, 100 ml coupling gel, Transport case, AA batteries, User manual
Accuracy
± 0.04 mm H [mm] (<10 mm); ± 0.4% H [mm] (> 10 mm)
Measuring Range
PE: pulse-echo mode 0.65-600 mm (steel), EE: echo-echo mode 2.50-60 mm
Application
Suitable for most applications
Resolution (In.)
0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Description
The PCE-TG 300 is a wall ultrasonic tester with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the PCE-TG 300. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the wall ultrasonic tester PCE-TG 300 and thus adapted to a wide variety of materials. The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.
