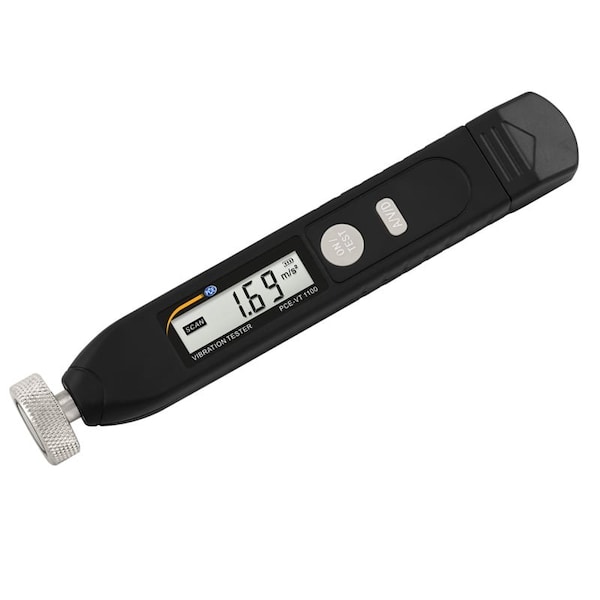

Vibration meter, 0.01-199.9 m/s sq. with 10-1000 Hz range for acceleration, velocity, displacement
Mfr # PCE-VT 1100M
Zoro # G922432603
product price:Â $474.99
/ea
Free Shipping & Returns
Key Features
Includes
1 x Accelerometer PCE-VT 1100M, 1 x Magnetic sensor, 1 x PCE-VT-NF-10 standard probe (length 10 mm), 2 x Batteries, 1 x Carrying case, 1 x Storage box, 1 x User manual
Display
LCD, Response time approx. 1 second
For Use With
Hand-held measuring device for the individual assessment of vibrations on machines and systems.
Displacement
0.001 to 1.999 mm p-p
Acceleration Accuracy
≤ 3 %
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-VT 1100M
- Zoro #
- G922432603
- UPC #
- -
- Country of Origin
- China
Dimensions
- Width
- 0.9 in
- Length
- 6.1 in
Details
- Includes
- 1 x Accelerometer PCE-VT 1100M, 1 x Magnetic sensor, 1 x PCE-VT-NF-10 standard probe (length 10 mm), 2 x Batteries, 1 x Carrying case, 1 x Storage box, 1 x User manual
- Display
- LCD, Response time approx. 1 second
- For Use With
- Hand-held measuring device for the individual assessment of vibrations on machines and systems.
- Displacement
- 0.001 to 1.999 mm p-p
- Acceleration Accuracy
- ≤ 3 %
- Power Source
- 2 x 6V CR2032 button cell
- Velocity
- 0.01 to 199.9-mm/s rms
- Frequency Range (Hz)
- 10 Hz to 1 kHz, 10 to 500 Hz
- Displacement Accuracy
- #ERROR!
- Vibration speed Accuracy
- ±5 %, ±2 Digits
- Acceleration Range
- 0.01 to 199.9-m/s² peak
Description
The accelerometer is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display. The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.
