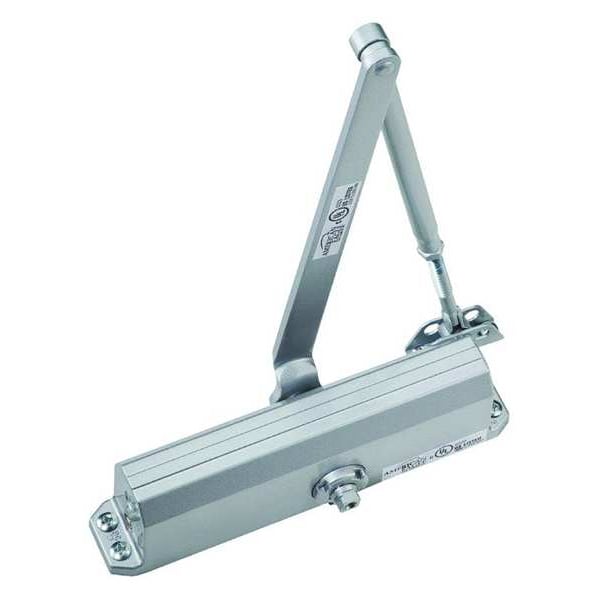

Manual, Hydraulic, PDQ 3100, Light Commercial Closer, Light Duty Interior and Exterior, Gray

  • Mfr # 3101 BC PA 689
  • Zoro # G1607597
product price:
$
66.19
/ea

Key Features

Closer Mounting Style
Parallel, Regular, Top Frame
Closer Performance
Light Duty
Closer Series
PDQ 3100
Closer Type
Non-Hold Open
Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3101 BC PA 689
Zoro #
G1607597
UPC #
-
Country of Origin
Korea, Republic of
Item
Light Commercial Closer
Closer Mounting Style
Parallel, Regular, Top Frame
Closer Performance
Light Duty
Closer Series
PDQ 3100
Closer Type
Non-Hold Open
Color
Gray
Finish
Aluminum Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Aluminum
Max. Door Opening
180 Degrees
Arm Material
Cast Iron
Standards
ANSI/BHMA A156.4, UL Listed
ADA Compliant
Yes
Mounting Hardware
Included
Ligature Resistant
No
Arm Type
Parallel
Category Type
Parallel Arm
Series
3100
Door Handing
Non-Handed
For Use With
Commercial Doors
Mounting Style
Surface Mounted
Closer Cycles
2,000,000
Stop Type
Compression
Fire Rating
3 hr
Includes Hardware
Hardware Included
Performance Grade
3
ANSI/BHMA Finish
Aluminum Painted
Compatible Brand
LCN
Interior/Exterior Use
Interior/Exterior
Spring Type
Adjustable
Door Opening - Maximum
180 Degrees
Compatible Series
1260
Ligature-Resistant
Not Ligature-Resistant
Product Type
Door Closer
Operation Style
Manual
Shell Material
Aluminum
Wire Color
Gray
Traction Material
Aluminum

Dimensions

Housing Depth
2 in
Housing Height
1 7/8 in
Housing Length
11 1/4 in
Exterior Door Width - Maximum
36 in
Spring Size - Minimum
3
Interior Door Width - Maximum
42 in
Spring Size - Maximum
4
Height Between Mounting Holes
3/4 in
Length Between Mounting Holes
9 1/16 in

Description

Door Closer, GAV 3101 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Light Duty, Closer Type Non-Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A156.4, UL Listed, ADA Compliant Yes, Finish Natural, Arm Material Cast Iron, Arm Type Parallel, Color Gray
