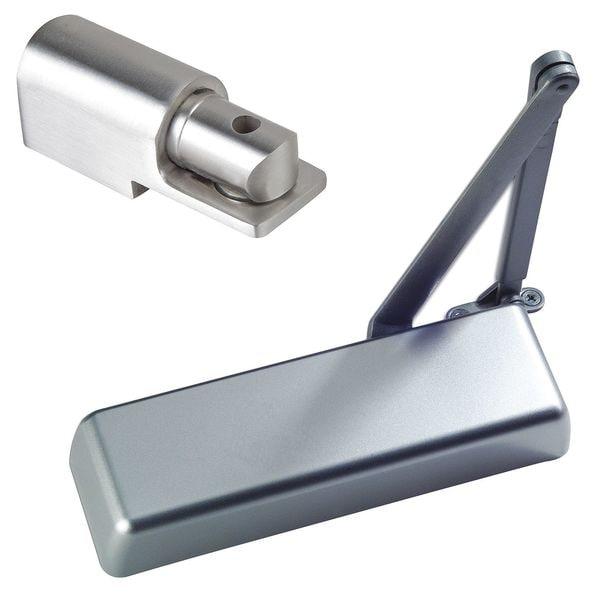

Manual, Hydraulic, PDQ 7100, Institutional Full Featured Closer, Heavy Duty Interior and Exterior

  • Mfr # 7101 BC SCS 689

  • Zoro # G0487825

product price:  $189.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel, Regular, Top Frame
Closer Performance
Heavy Duty
Closer Series
PDQ 7100
Closer Type
Spring Cush and Stop Arm
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7101 BC SCS 689
Zoro #
G0487825
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Housing Depth
2"
Housing Height
3-1/2"
Housing Length
12"
Spring Size
Adjustable 1 to 6
Interior Door Width - Maximum
54 in
Height Between Mounting Holes
2 1/4 in
Length Between Mounting Holes
1 in, 3 in
Spring Size - Maximum
6
Exterior Door Width - Maximum
48 in
Spring Size - Minimum
1

Details

Item
Institutional Full Featured Closer
Closer Mounting Style
Parallel, Regular, Top Frame
Closer Performance
Heavy Duty
Closer Series
PDQ 7100
Closer Type
Spring Cush and Stop Arm
Color
Gray
Finish
Aluminum Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Cast Iron
Arm Type
Parallel
Mounting Hardware
Included
Max. Door Opening
110 Degrees
Standards
UL 228 Listed; ANSI/UL 10C; ANSI/BHMA A156.4-2006; Grade 1; ADA; ICC/ANSI 117.1
ADA Compliant
Yes
Ligature Resistant
No
Arm Material
Cast Iron
Category Type
Parallel Arm
Series
7100
Door Handing
Non-Handed
For Use With
Commercial Doors
Mounting Style
Surface Mounted
Compatible Series
4040
Includes Hardware
Hardware Included
Ligature-Resistant
Not Ligature-Resistant
Interior/Exterior Use
Interior/Exterior
Compatible Brand
LCN
Operation Style
Manual
Stop Type
Compression
Performance Grade
1
Closer Cycles
2,000,000
Product Type
Door Closer
Spring Type
Adjustable
Door Opening - Maximum
110 Degrees
Fire Rating
3 hr
ANSI/BHMA Finish
Aluminum Painted

Description

Door Closer, GAV 7101 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Non-Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A156.4, UL Listed, ADA Compliant Yes, Finish Natural, Arm Material Cast Iron, Arm Type Parallel, Color Gray
