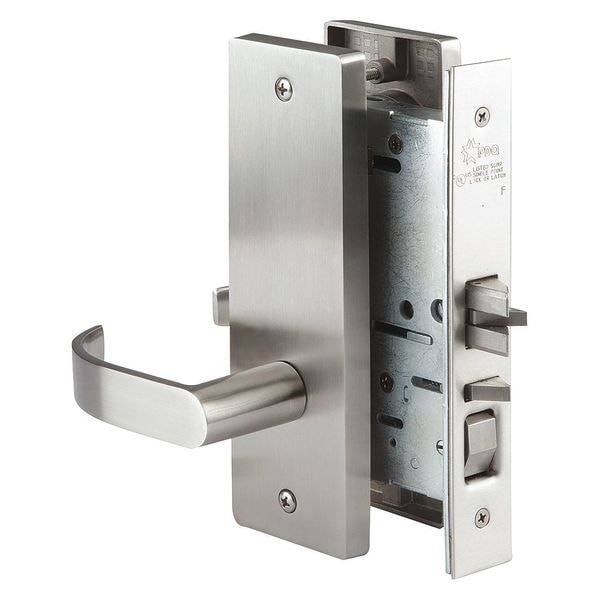

Pdq Mortise Lockset, Lever, MR, MR Escutcheon, Class, Mech. MR148BJEW630RHSCC - main

Mortise Lockset, Lever, MR, MR Escutcheon, Class, Mech.

  • Mfr # MR148BJEW630RHSCC

  • Zoro # G9362001

product price: $218.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MR148BJEW630RHSCC
Zoro #
G9362001
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
Style
Boston
Lockset Finish
Satin Stainless Steel
Keyway Type
Schlage C
Key Type
Keyed Different
Includes
Hardware
Backset
2 3/4 in
Mortise/Cylindrical
Mortise
Strike Dim.
1-1/4 in x 4-7/8 in
For Use With
Wood and Steel Doors
Standards
ANSI/BHMA 156.13, FL 21376, ICC/ANSI 117.1, UL and cUL Listed 10C
Location Type
Commercial, School
Number of Keys
2
Features
12 ga Cold Rolled Steel Case
Strike Type
Curved Lip
Ligature Resistant
No
Item
Door Lockset
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Key Material
Nickel Silver
Series
MR
Lockset Performance Strength
Extra Heavy Duty
Case Material
13 ga. Cold Rolled Dichromated Steel
Keying
Keyed Different
Grade
1
Function
Classroom
Finish
Satin Stainless Steel
Fire Rated
3 hr.
Handle Type
Lever
Pins
6
Visual Indicator Message
No Message
Cylinder Core Type
Large Format Interchangeable Core Cylinder
Locking/Unlocking Access - Outside
Keyway
Application
Commercial, Schools
ANSI/BHMA Finish
Satin Stainless Steel
Performance Grade
1
ANSI Grade
1
Locking/Unlocking Access - Inside
Not Lockable
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Hand Orientation
Right-Handed
Trim Plate Shape
Rectangular
Lockset Type
Mechanical
Ligature-Resistant
Not Ligature-Resistant
Includes Core
Core Included
Includes Hardware
Hardware Included
UL Fire Rating
UL10C
Lockset Style
Boston
Knob/Handle Material
Stainless Steel

Description

Mortise Lockset,Lever,Mechanical,Boston
