This item is Discontinued.

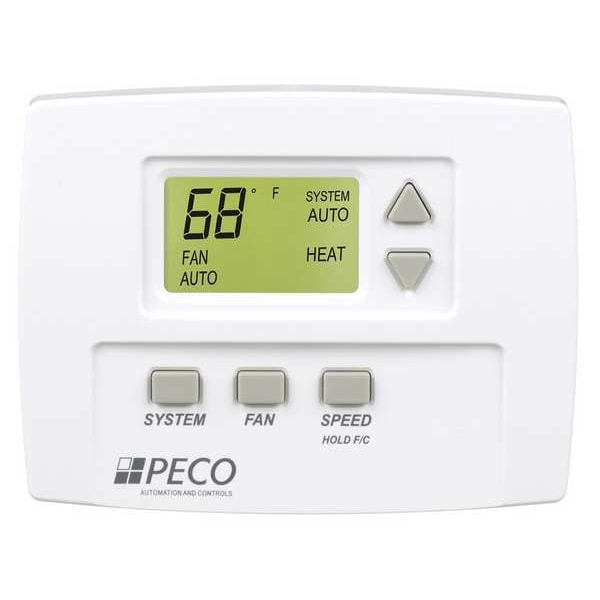

Peco Fan Coil T-Stat, Fan Non Staged 3 Speed TA170-001

Fan Coil T-Stat, Fan Non Staged 3 Speed (Discontinued)

  • Mfr # TA170-001
  • Zoro # G0914225
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TA170-001
Zoro #
G0914225
UPC #
879978000158
Country of Origin
China

Dimensions

Depth (In.)
1 1/2 in
Width (In.)
5 2/3 in
Height (In.)
4 1/2 in
Overall Width
5 13/16 in
Screen Width
1 7/8 in
Overall Depth
1 3/8 in
Screen Height
1 3/16 in
Digit Size
Easy Read
Overall Height
4 3/8 in

Details

Item
Fan Coil Thermostat
Fan Coil Thermostat Type
Line Voltage, Low Voltage
Thermostat Switch Type
6 Relays
Switch Action
Open/Close on Rise
Number of Switches
4, 6
Thermostat Control Range
50 Degrees to 90 Degrees F
Differential (Deg. F)
Configurable 3
Thermostat Number of Pipes
2 or 4
Uses
Commercial HVAC Applications
Includes
Hardware
Input Voltage
24V AC or 110 to 277V AC
Full Load Amps @ 120VAC
5.8
Rated For Pilot Duty
Yes 24VA
Locked Rotor Amps @ 240V
17.4 A
Fan Switching
Off-Hi-Med-Low
Special Information
Auto or Manual Heat to Cool Changeover, Key Pad Lockout
Display
Digital LCD
Sensor Type
Local or Remote
Mounting Position
Horizontal
Thermostat Number of Speeds
3
Agency Compliance
UL
Enclosure Type
Plastic
Full Load Amps @ 240VAC
2.9
Number of Stages
1
Application
Heat and Cool
Voltage
24 or 110 to 277V AC
Temp. Settings per Day
1
Locked Rotor Amps @ 120V
34.8 A
System Switching
Auto-Heat-Cool-Off
Thermostat Item
Fan Coil Thermostat
Color
White
Thermostat Heating/Cooling
Heating/Cooling
Switch Type
6 Relays
Sensor Location
Remote
Contact Rating
24 or 110 to 277V AC
Electrical Connection Type
Hardwired
Temperature Readout
Yes
Full Load Amps @ 240V AC
2.9 A
Maximum Operating Temperature
90 Degrees F
Maximum Control Temperature
90 Degrees F
Number of Zones
1
Fan Settings
Hi-Med-Low-Off
Stages
1H/1C
Minimum Control Temperature
50 Degrees F
Full Load Amps @ 120V AC
5.8 A
Humidification Control
No
Terminal Designations
Wire Leads
Number of Relay Inputs
6
Control Type
Push Button
Display Type
Digital
Housing Type
Plastic
Differential Type
Fixed
Operating Temperature Range
50 Degrees to 90 Degrees F
Thermostat Type
Line Voltage, Low Voltage
Includes Positive Off
Yes
Occupancy Sensor
Includes Remote Occupancy Sensor
Standards
ADA Requirement, UL, UL Canada
Dehumidification Control
No
Temperature Control Range
50 Degrees to 90 Degrees F
Number of Pipes
2 or 4
Temperature Limiting
Yes
System/Fan Settings
Auto-Cool-Heat-Off, Hi-Med-Low-Off
Housing Material
Plastic
Key Pad Lockout
Yes
Dual Transformer Compatible
No
Full Load Amps @ 277V AC
2.4 A
Shape
Rectangle
System Settings
Auto-Cool-Heat-Off
Locked Rotor Amps @ 277V
14.4 A
Temperature settings per day
1
Temperature Differential
3 Degrees F
Compatible System Type
Fan Coil Unit
Mounting Direction/Shape
Horizontal
Changeover Type
Automatic and Manual
Application/Stages
Heat and Cool, 1H/1C
Mounting Direction
Horizontal
Pilot Duty Rating
24VA
Temperature Scale
Celsius/Fahrenheit
Backlit Screen
Yes
Backlit Screen Color
Green
Programming Capability
Not Programmable
Housing Color
White
Type
Low or Line Voltage

Description

Fan Coil Thermostat, Line Voltage, Low Voltage, Thermostat Switch Type 6 Relays, Switch Action Open/Close on Rise, Number of Switches 4, 6, Thermostat Control Range 50 Degrees to 90 Degrees F, Differential (Deg. F) Configurable 3, Thermostat Heating/Cooling Heating/Cooling, Thermostat Number of Pipes 2 or 4, Thermostat Number of Speeds 3, Fan Switching Off-Hi-Med-Low, System Switching Auto-Heat-Cool-Off, Sensor Type Local or Remote, 4 1/2 in, Sensing Bulb Dia. (In.) -, 5 2/3 in
