This item is Discontinued.

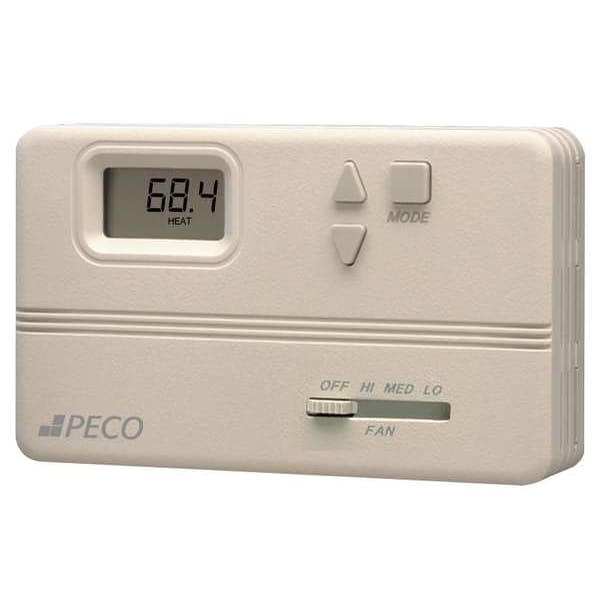

Peco Fan Coil Thermostat, Electronic, Digital TB158-100

Fan Coil Thermostat, Electronic, Digital (Discontinued)

  • Mfr # TB158-100
  • Zoro # G2462975
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TB158-100
Zoro #
G2462975
UPC #
879978000097
Country of Origin
China

Dimensions

Width (In.)
4 1/2 in
Height (In.)
2 13/16 in
Depth (In.)
1 in
Screen Width
1 1/8 in
Screen Height
5/8 in
Overall Depth
1 in
Overall Height
2 13/16 in
Digit Size
Standard
Overall Width
4 1/2 in

Details

Item
Fan Coil Thermostat
Fan Coil Thermostat Type
Digital, Electronic
Thermostat Switch Type
Triac
Switch Action
3 Wire Floating or On-Off
Number of Switches
6
Thermostat Control Range
50 Degrees to 90 Degrees F
Differential (Deg. F)
1
Input Voltage
24V AC
System Switching
Off-Heat-Cool-Auto
Sensor Type
Thermistor
Uses
Fan Coil, 2 Pipe or 4 Pipe
Thermostat Number of Pipes
2 or 4
Color
White
Includes
Mounting Hardware
Locked Rotor Amps @ 120V
34.8 A
Temp. Settings per Day
Manual Adjust
Fan Switching
Off-Hi-Med-Low
Number of Stages
2
Mounting Position
Horizontal
Thermostat Number of Speeds
3
Display
0.6 Sq in LCD Backlit
Special Information
Low Voltage Thermostat is Electrically Isolated From The Line Voltage Fan Switching
Full Load Amps @ 240VAC
2.9
Thermostat Heating/Cooling
Heating/Cooling
Full Load Amps @ 120VAC
5.8
Agency Compliance
UL, cUL, CE
Thermostat Item
Fan Coil Thermostat
Enclosure Type
Rigid Vinyl
Locked Rotor Amps @ 240V
17.4 A
Rated For Pilot Duty
125VA
Voltage
24V
Application
Heat and Cool
Switch Type
Triac
Maximum Operating Temperature
90 Degrees F
Thermostat Type
Fan Coil Thermostat
Locked Rotor Amps @ 277V
14.4 A
Temperature Differential
1 Degrees F
Backlit Screen
Yes
Minimum Control Temperature
50 Degrees F
Number of Pipes
2 or 4
System/Fan Settings
Auto-Cool-Heat-Off, Hi-Med-Low-Off
Control Type
Push Button, Slide Switch
Pilot Duty Rating
125VA
Mounting Direction/Shape
Horizontal
Application/Stages
Heat and Cool, 1H/1C
Mounting Direction
Horizontal
Housing Color
White
Changeover Type
Automatic and Manual
Full Load Amps @ 277V AC
2.4 A
Differential Type
Fixed
Housing Material
Plastic
Full Load Amps @ 240V AC
2.9 A
Fan Settings
Hi-Med-Low-Off
Number of Zones
6
Humidification Control
No
Housing Type
Rigid Vinyl
Backlit Screen Color
Gray
Full Load Amps @ 120V AC
5.8 A
Stages
1H/1C
Temperature Scale
Celsius/Fahrenheit
Temperature settings per day
Manual Adjust
Key Pad Lockout
No
Dual Transformer Compatible
No
Programming Capability
5-1-1, 5-2, 7-Day
Display Type
Digital
Maximum Control Temperature
90 Degrees F
Shape
Rectangle
Dehumidification Control
No
Temperature Readout
Yes
Temperature Control Range
50 Degrees to 90 Degrees F
System Settings
Auto-Cool-Heat-Off
Contact Rating
24V AC
Terminal Designations
1, 10, 11, 12, 13, 15, 16, 17, 2, 3, 4, 5, 6, 7
Standards
CE, cUL, UL
Operating Temperature Range
50 Degrees to 90 Degrees F
Includes Positive Off
Yes
Compatible System Type
Fan Coil Unit
Frequency
50 Hz, 60 Hz
Type
Electronic, Digital

Description

Fan Coil Thermostat, Digital, Electronic, Thermostat Switch Type Triac, Switch Action 3 Wire Floating or On-Off, Number of Switches 6, Thermostat Control Range 50 Degrees to 90 Degrees F, Differential (Deg. F) 1, Thermostat Heating/Cooling Heating/Cooling, Thermostat Number of Pipes 2 or 4, Thermostat Number of Speeds 3, Fan Switching Off-Hi-Med-Low, System Switching Off-Heat-Cool-Auto, Sensor Type Thermistor, 2 13/16 in, 4 1/2 in, 1 in
