Shop PECO

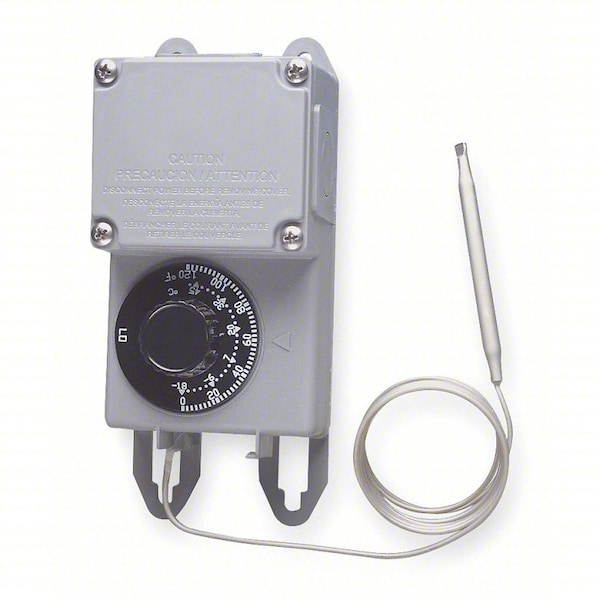

Line Voltage Mechanical Thermostat, Heat or Cool, 0 to 120F, Exposed Dial, 120 to 277V AC, 1C, 1H

  • Mfr # TRF115-005
  • Zoro # G2110105
product price:
$
84.95
/ea

Key Features

Compatible System Type
Dampers, Fans, Heat Trace, Heaters
Application
Heat or Cool
Switch Action
Open on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TRF115-005
Zoro #
G2110105
UPC #
879978000301
Country of Origin
Korea, Republic of

Dimensions

Capillary Length
60 in
Sensing Bulb Dia.
3/8 in
Capillary Length/Bulb Diameter
5 ft Capillary, 2 5/16 in x 5/16 in Bulb
Overall Depth
2-1/2 in
Overall Height
6-3/8 in
Overall Width
3-1/8 in
Bulb Length
2 3/8 in
Bulb Diameter
3/8 in
Fits Chest Size
Rain Tight NEMA 4X Enclosure

Details

Compatible System Type
Dampers, Fans, Heat Trace, Heaters
Application
Heat or Cool
Switch Action
Open on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
0 to 120 Degrees F
Control Type
Exposed Dial
Voltage
120 to 277V AC
Mounting
Wall
Item
Line Voltage Mechanical Thermostat
Sensor Type
Hydraulic Capillary Bulb (Stainless Steel)
Number of Switches
1
Contact Rating Resistive @ 120V
25 A
Contact Rating Resistive @ 277V
20 A
Enclosure Type
Rain Tight
Inductive Amps @ 240V
12 A
Locked Rotor Amps @ 120V
80 A
Locked Rotor Amps @ 240V
60 A
Resistive Amps @ 208VAC
25 A
Contact Rating Resistive @ 240V
25 A
Inductive Amps @ 120V
16 A
Standards
CSA Certified, NEC 547, UL Listed
For Use With
Agricultural, Commercial and Industrial Applications
Thermostat Type
Weatherproof Single-Stage Controls
Features
Rain Tight NEMA 4X Enclosure
Contact Rating
120 to 277V AC
Enclosure Color
Gray
Minimum Operating Temperature
-30 Degrees F
Minimum Control Temperature
0 Degrees F
Sensor Location
Remote
Temperature Sensitivity
+/-6 Degrees F
Stages
1H/1C
Maximum Operating Temperature
140 Degrees F
Number of Poles
1
Pilot Duty Rating
125 VA @ 120 to 277V AC
Full Load Amps @ 120V AC
15 A
Changeover Type
Automatic
Differential Type
Fixed
Temperature Scale
Fahrenheit
Enclosure NEMA Rating
4X
Full Load Amps @ 240V AC
12 A
Maximum Control Temperature
120 Degrees F
Temperature Differential
3 Degrees F
Programming Capability
Not Programmable
Housing Material
Plastic
Includes
Remote Sensing Bulb
Enclosure Material
Plastic
Operating Temperature Range
-30 Degrees to 140 Degrees F
Resistive Amps @ 208V AC
25 A

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 0 Degrees to 120 Degrees F, Thermostat Voltage 24, 120 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 12A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 3 Degrees F, Height 6-3/8 In.
