  11. Programmable Thermostat, 7 Programs, 3 H, 3 C, Wall Mount, Hardwired/Battery, 24VAC

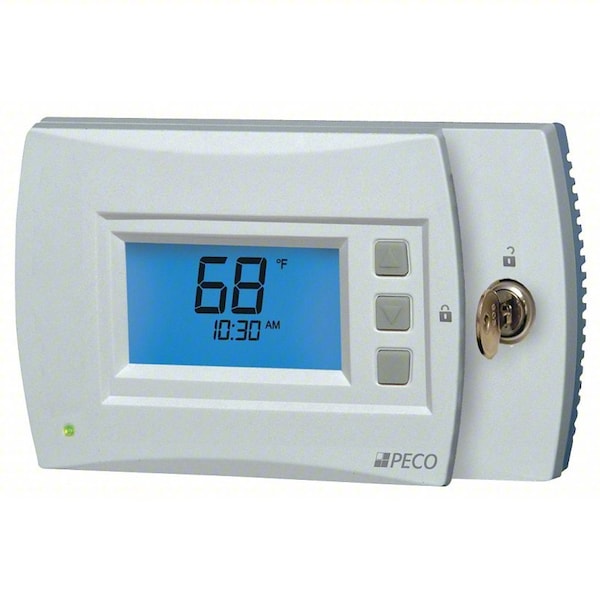

Peco Programmable Thermostat, 7 Programs, 3 H, 3 C, Wall Mount, Hardwired/Battery, 24VAC T4932SCH-002 - main

Programmable Thermostat, 7 Programs, 3 H, 3 C, Wall Mount, Hardwired/Battery, 24VAC

  • Mfr # T4932SCH-002

  • Zoro # G8274585

product price: $162.99
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
3
Mounting Type
Horizontal
Mounting Location
Wall
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T4932SCH-002
Zoro #
G8274585
UPC #
879978001223
Country of Origin
China

Dimensions

Height
4 5/16"
Width
5 23/32"
Display Size
4 sq in
Depth
1 5/16 in
Screen Height
1 1/2 in
Overall Width
7 1/2 in
Screen Width
2 3/4 in
Overall Height
4 5/8 in
Digit Size
Easy Read
Overall Depth
1 5/16 in

Details

Item
Programmable Thermostat
Voltage
24VAC
Stages Heat
3
Mounting Type
Horizontal
Mounting Location
Wall
Color
White
Control Range
50 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
3
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
No
Programs per Week
7
WiFi Capability
No
Programmable Fan
Yes
Low Battery Indicator
Yes
Key Pad Lockout
Yes
Batteries Included
Yes
Temporary Temperature Hold
Yes
Includes
2 AA Batteries
Battery Backup
Yes
Fan Switching
Auto-on
Dehumidification Control
Yes
Remote Sensing Capability
Yes
Agency Compliance
ASHRAE 90.1-9, California Title 24
Display Type
LCD, Backlit
Automatic Changeover
Yes
Humidification Control
Yes
Temp. Settings per Day
4
Temperature Limiting
Yes
Display Color
Blue
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Terminal Designations
C, W1 (B/O), W2 (AUX), G, A, E, Y1, Y2, RH, RC, SC, S1, S2, S3
Temporary Program Override
Yes
Filter Indicator
Yes
For Use With
SB200-001 Occupancy Sensor, SP155-017 INDOOR REMOTE SENSOR, 70327 OUTDOOR REMOTE SENSOR, 70481 SD Card Performance PRO
Features
Occupancy Activation By User Button Push or Occupancy Detection, SD Card Interface, Locking Cover, Separate Temperature Limit Adjustment for Heat and Cool Set Points, Humidity Control Outputs
Footnotes
1, 2, 3, 4, 5, 6, 8
Mounting
Horizontal
Standards
ASHRAE 90.1-9, California Title 24
Control Type
Push Button
Occupancy Sensor
Includes Occupancy Sensor
Type
Digital Programmable
Stages
3H/2C Conventional, 4H/2C Heat Pump
Includes Positive Off
Yes
Housing Color
White
Maximum Operating Temperature
120 Degrees F
Smart Connectivity
No Connectivity
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-On
Mounting Direction/Shape
Horizontal
Maximum Control Temperature
90 Degrees F
Minimum Control Temperature
50 Degrees F
Frequency
50 Hz, 60 Hz
Mounting Direction
Horizontal
Thermostat Type
Low Voltage
Number of Heating Stages - Conventional System
3
Changeover Type
Automatic and Manual
Temperature Readout
Yes
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux
Backlit Screen Color
Blue
Application/Stages
Heat and Cool; 3H/2C Conventional, 4H/2C Heat Pump
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Number of Cooling Stages - Conventional System
2
Programming Capability
5-1-1, 5-2, 7 Day
Fan Settings
Auto-On
Millivolt Compatible
No
Number of Cooling Stages - Heat Pump System
2
Temperature Differential
1 Degrees F
Electrical Connection Type
Hardwired
External Power Source
Furnace
Backlit Screen
Yes
Differential Type
Fixed
Shape
Rectangle
Operating Temperature Range
0 Degrees to 120 Degrees F
Temperature Scale
Fahrenheit/Celsius
Number of Heating Stages - Heat Pump System
4
Sensor Location
Remote
Temperature Control Range
50 Degrees to 90 Degrees F
Application
Heat and Cool
Minimum Operating Temperature
0 Degrees F
Includes Batteries
Yes
Battery Type
(2) AA Batteries
Occupancy Sensor Compatibility
2NCC2, 2NCC8
Number of Zones
2
Contact Rating
20 to 30V AC
Temperature settings per day
4
Filter Change Reminder
Yes

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations A, C, E, G, RC, RH, S1, S2, S3, SC, W1 (B/O), W2 (Aux), Y1, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On, Display Size 4 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control Yes, Dehumidification Control Yes, Remote Sensing Capability Yes
