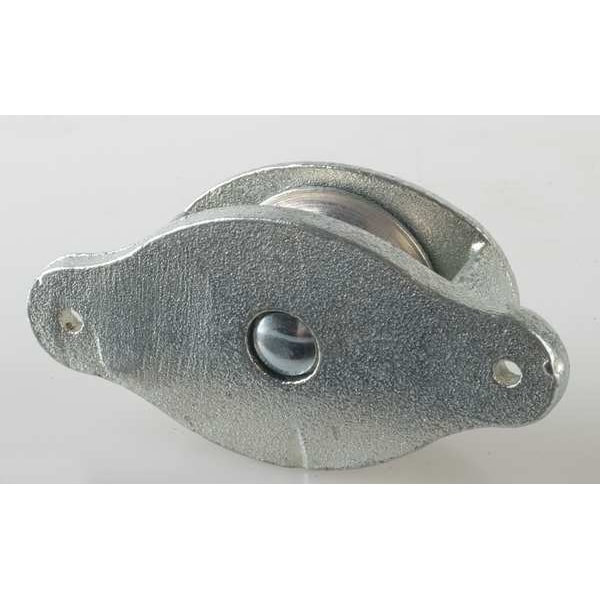

Cheek Block, Fibrous Rope, 3/8 in Max Cable Size, Not Rated Max Load, Electro-Galvanized

  • Mfr # 3-020-15-86-
  • Zoro # G4488601

product price:
$
18.99
/ea

Key Features

Max. Cable Size
3/8 in
Designed For
Fibrous Rope
Attachment Type
Bolt-On
Rope Dia.
3/8 in
Working Load Limit
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3-020-15-86-
Zoro #
G4488601
UPC #
094716114052
Country of Origin
Multiple
Item
Cheek Block
Designed For
Fibrous Rope
Attachment Type
Bolt-On
Working Load Limit
Not Rated
Finish
Galvanized
Bearing Type
Sleeve
Sheave Material
Steel
Product Type
Cheek Pulley Block
Housing Material
Steel
Mount Type
Side Mount
Number of Grooves
1
Operation
Lifting, Pulling
Compatible Rope Type
Fibrous Rope

Dimensions

Max. Cable Size
3/8 in
Rope Dia.
3/8 in
Mounting Hole Dia.
5/32 in
Sheave Width
17/32 in
Sheave Inside Dia.
1 3/32 in
Length
3 23/32 in
Sheave Outside Dia.
1 1/2 in
Depth
1 25/32 in
Width
1 25/32 in
Rope Diameter
3/8 in
Sheave Inside Diameter
1 3/32 in
Sheave Depth
17/32 in
Overall Depth
1 3/4 in
Compatible Rope Diameter
3/8 in
Mounting Hole Diameter
5/32 in
Overall Height
3 3/4 in
Sheave Outside Diameter
1 1/2 in
Overall Width
1 3/4 in

Description

Pulley Block, Product Type Cheek Pulley Block, Pulley Type Mounted, Mount Type Side Mount, Working Load Limit Not Rated, Operation Lifting, Pulling, Attachment Type Bolt-On, Compatible Rope Diameter 3/8 in, Sheave Inside Diameter 1 3/32 in, Sheave Depth 17/32 in, Sheave Outside Diameter 1 1/2 in, Compatible Rope Type Fibrous Rope, Bearing Type Sleeve, Attachment Inside Diameter Not Applicable, Housing Material Steel, Mounting Hole Diameter 5/32 in, Number of Grooves 1, Sheave Material Steel
