  11. Caster, Swivel Plate, Black Nylon, 3500 lb.

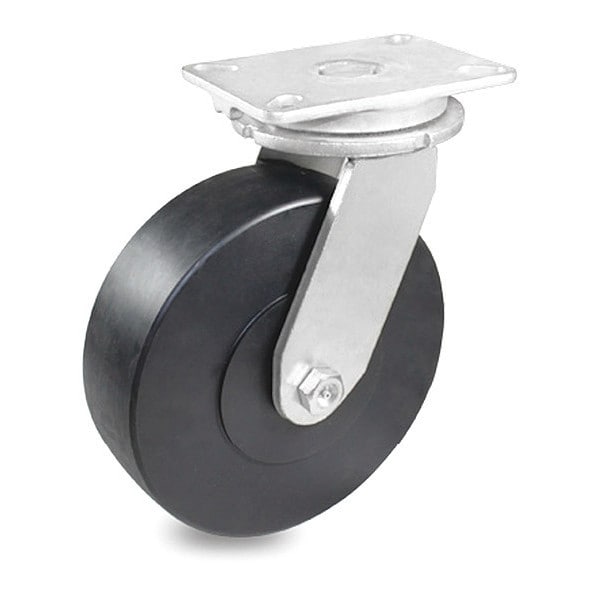

Pegasus Caster, Swivel Plate, Black Nylon, 3500 lb. P29S-NMB080K-18 - main

Caster, Swivel Plate, Black Nylon, 3500 lb.

  • Mfr # P29S-NMB080K-18

  • Zoro # G0252644

product price: $307.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Machined Nylon
Caster Brake Type
No Brake Included
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P29S-NMB080K-18
Zoro #
G0252644
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/2 in
Swivel Radius
7 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Machined Nylon
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70-80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. P-NMB-080x030/075K
Tread Color
Black
Application
Retail, Industrial, Commercial, Corrosion Resistance
Tread
Standard
Caster Brake Included
No
Extended Lead
No
Wheel Core Material
Nylon
Accessories
Optional: P-DL29-18 (Directional Lock)
Load Capacity
3500 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
ESD Conductive
No
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy Duty
Series
P29 Series
Operating Temperature Range
-20 Degrees To 250 Degrees F

Description

Caster,Swivel Plate,Black Nylon,3500 lb.
