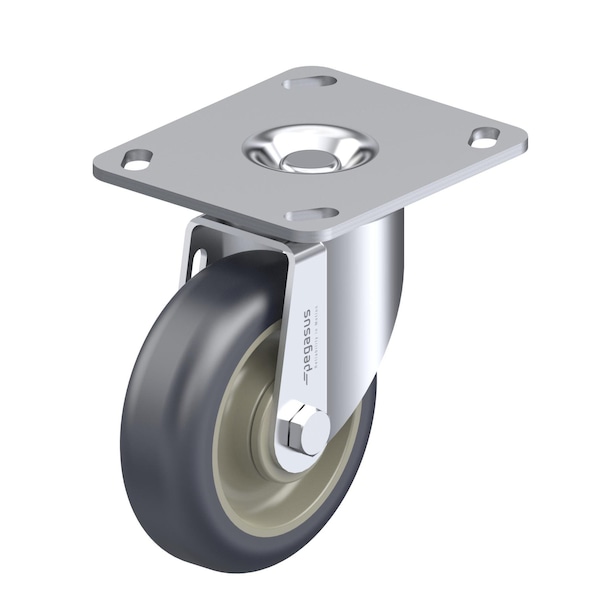

Pegasus Caster, Swivl Plate, Gray Urethane, 200 lb. P12S-UP030B-P3 - main

Caster, Swivl Plate, Gray Urethane, 200 lb.

  • Mfr # P12S-UP030B-P3

  • Zoro # G0241331

product price:  $16.15
/ea

Key Features

Wheel Width
1-1/4 in
Caster Sub-Type
Swivel
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-UP030B-P3
Zoro #
G0241331
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Overall Height
4-1/4 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
2-13/16 in
Mounting Plate Size
3-3/4 in x 4-3/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Mfr. No. P-UP-030x013/038B
Caster Brake Included
No
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Number of Wheels
1
Standards
RoHS, ICWM, NSF
Tread
Standard
Tread Color
Gray
Non-Marking
Yes
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
ESD Conductive
No
Wheel Core Material
Polypropylene
Load Capacity
300 lb
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Load Rating Range
Light Duty
Series
P12 Series
Wheel Bearing Type
Annular Ball
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
50-60 Shore D
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Caster,Swivl Plate,Gray Urethane,200 lb.
