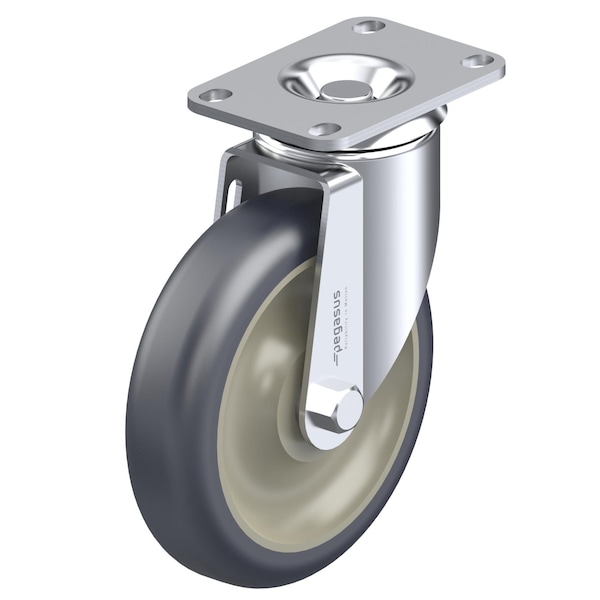

Pegasus Castr, Swivl Plate, Gray Urethane, 175 lb. P12S-UP030D-12 - main

Castr, Swivl Plate, Gray Urethane, 175 lb.

  • Mfr # P12S-UP030D-12

  • Zoro # G0238750

product price:  $9.45
/ea

Key Features

Wheel Width
1-1/4 in
Core Color
Gray
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UP-030x013/038G
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-UP030D-12
Zoro #
G0238750
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Item
Swivel Caster
Core Color
Gray
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UP-030x013/038G
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
System of Measurement
Inch
Tread Color
Gray
Standards
RoHS, ICWM, NSF
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Number of Wheels
1
Caster Brake Type
No Brake Included
Tread
Standard
Non-Marking
Yes
Caster Frame Material
Steel
Extended Lead
No
Load Capacity
300 lb
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Polypropylene
Series
P12 Series
Load Rating Range
Light Duty
ESD Conductive
No
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
50-60 Shore D
Wheel Bearing Type
Plain
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Castr,Swivl Plate,Gray Urethane,175 lb.
