  6. Castr, Swivl Plte, Red Urethane, 220 lb., Tl

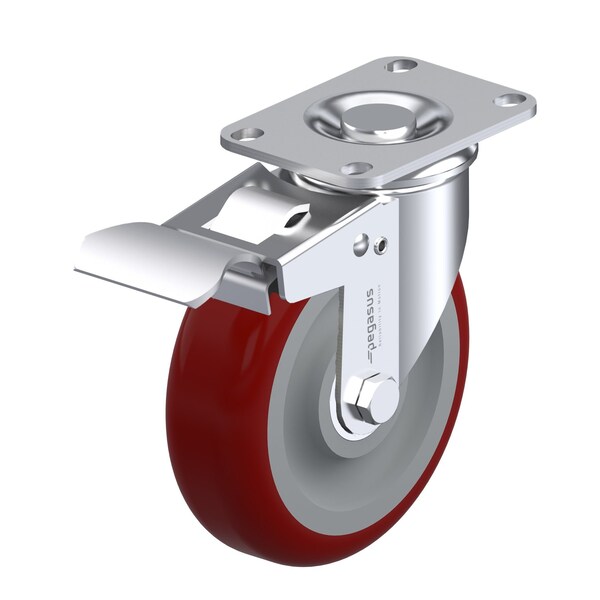

Pegasus Castr, Swivl Plte, Red Urethane, 220 lb., Tl P12S-URP030K-12-TB - main

Castr, Swivl Plte, Red Urethane, 220 lb., Tl

  • Mfr # P12S-URP030K-12-TB

  • Zoro # G0239073

product price:  $17.45
/ea

Key Features

Core Color
Gray
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Wheel Width
1-1/4 in
Tread
Standard
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-URP030K-12-TB
Zoro #
G0239073
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1-1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Item
Swivel Caster With Total-Lock
Core Color
Gray
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Tread
Standard
Number of Wheels
1
System of Measurement
Inch
Tread Color
Red
Includes
Total-Lock Brake, Thread Guards
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-URP-030x013/038K
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Non-Marking
Yes
Caster Brake Type
Total Lock
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Frame Material
Steel
Extended Lead
No
ESD Conductive
No
Wheel Core Material
Polypropylene
Load Rating Range
Light Duty
Load Capacity
220 lb
Tread Shape
Standard
Includes Thread Guards
Yes
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Series
P12 Series
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
50-60 Shore D
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Castr,Swivl Plte,Red Urethane,220 lb.,Tl
