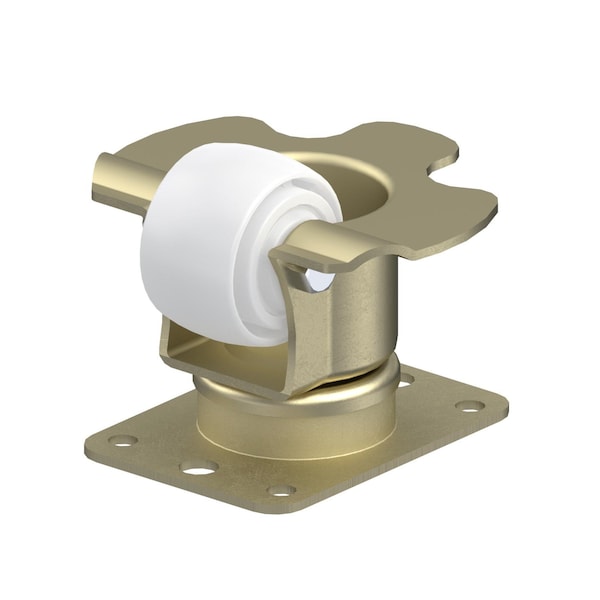

Pegasus Cstr, Air Cargo, Swivel Plate, Nyln, 440 lb. P19S-N58K-P-001 - main

Cstr, Air Cargo, Swivel Plate, Nyln, 440 lb.

  • Mfr # P19S-N58K-P-001

  • Zoro # G0249689

product price:  $34.39
/ea

Key Features

Number of Wheels
1
Extended Lead
No
Caster Brake Included
No
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P19S-N58K-P-001
Zoro #
G0249689
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Swivel Radius
54 mm
Wheel Width
35 mm
Wheel Dia.
58 mm
Overall Height
3-3/4 in
Mounting Plate Size
3-3/32 in x 4-1/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster
Number of Wheels
1
Extended Lead
No
Caster Brake Included
No
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Standards
RoHS, ICWM
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Caster Frame Material
Steel
Non-Marking
Yes
Core Color
White
Caster Sub-Type
Swivel
Tread Color
White
Inside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Tread
Standard
Application
Aerospace, Air Cargo Decking, Material Handling, Conveyors, Logistics
Load Capacity
440 lb
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
System of Measurement
Inch
Includes Thread Guards
No
Series
P19 Series
Tread Shape
Standard
ESD Conductive
No
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon
Wheel Hardness Rating
70-80 Shore D
Operating Temperature Range
-20 Degrees To 250 Degrees F

Description

Cstr,Air Cargo,Swivel Plate,Nyln,440 lb.
