  11. Cstr, Kingpinls Swvl Plt, Urthn, 990 lb., Bk

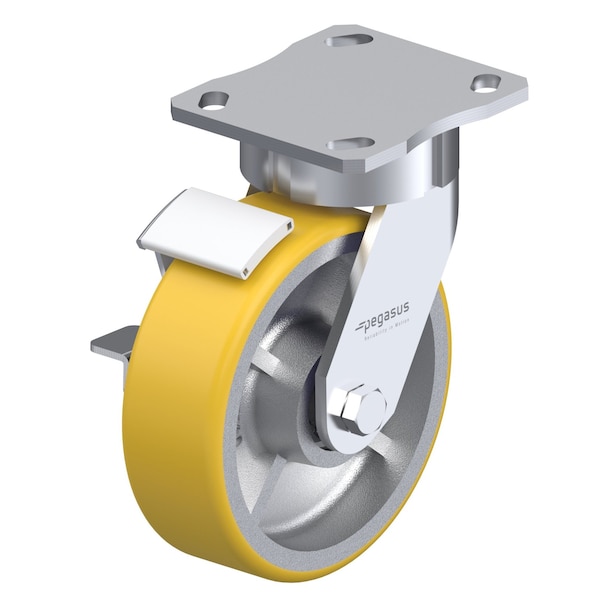

Pegasus Cstr, Kingpinls Swvl Plt, Urthn, 990 lb., Bk P25S-UY050K-14-WB - main

Cstr, Kingpinls Swvl Plt, Urthn, 990 lb., Bk

  • Mfr # P25S-UY050K-14-WB

  • Zoro # G0251402

product price: $74.59
/ea

Key Features

Caster Sub-Type
Kingpinless Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Strap Type Brake
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P25S-UY050K-14-WB
Zoro #
G0251402
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-7/8 in
Overall Height
6-1/2 in

Details

Item
Kingpinless Swivel Caster With Brake
Caster Sub-Type
Kingpinless Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Strap Type Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Replacement Wheel
Mfr. No. P-UY-050x020/050K
Standards
RoHS, ICWM
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Includes
Strap Type Brake
Swivel Raceway Type
Kingpinless Single Ball
Series
P25 Series
Wheel Core Material
Cast Iron
ESD Conductive
No
Load Capacity
840 lb
Load Rating Range
Medium Duty
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Tread Color
Yellow
Accessories
Optional: P-DL25-14 (Directional Lock)
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Kingpinls Swvl Plt,Urthn,990 lb.,Bk
