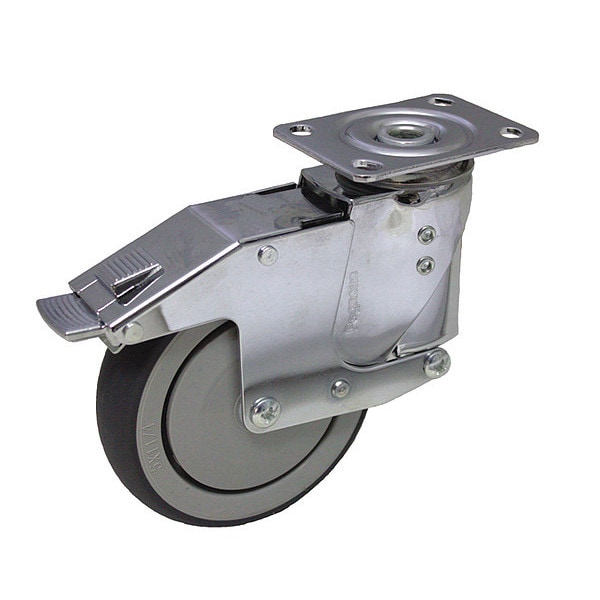

Pegasus Cstr, Shck Absr Swl Plt, Gry TPR, 220 lb, Bk P16S-RP050K-P-WB - main

Cstr, Shck Absr Swl Plt, Gry TPR, 220 lb, Bk

  • Mfr # P16S-RP050K-P-WB

  • Zoro # G0249311

product price:  $55.99
/ea

Key Features

Overall Height
6-7/16 in
Frame Finish
Chrome Plated
Tread
Standard
Wheel Dia.
5 in
Includes
Shock Absorbing, Thread Guards, Trailing End Brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P16S-RP050K-P-WB
Zoro #
G0249311
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-7/16 in
Wheel Dia.
5 in
Wheel Width
1-1/4 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
5-9/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-3/4 in x 3-3/4 in

Details

Item
Swivel Caster With Brake
Frame Finish
Chrome Plated
Tread
Standard
Includes
Shock Absorbing, Thread Guards, Trailing End Brake
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
Gray
Caster Mounting Type
Plate
System of Measurement
Inch
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. P-RP-050x013/031K
Tread Color
Gray
Number of Wheels
1
Caster Brake Type
Strap Type Brake
Caster Sub-Type
Swivel
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Extended Lead
No
Caster Frame Material
Steel
Max. Spring Deflection
13/32 in
Tread Shape
Standard
Load Capacity
220 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Series
P16 Series
Includes Thread Guards
Yes
ESD Conductive
No
Load Rating Range
Light Duty
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Wheel/Tread Material
Thermoplastic Rubber
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
85-95 Shore A
Maximum Compression Force
110 lb
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Cstr,Shck Absr Swl Plt,Gry TPR,220 lb,Bk
