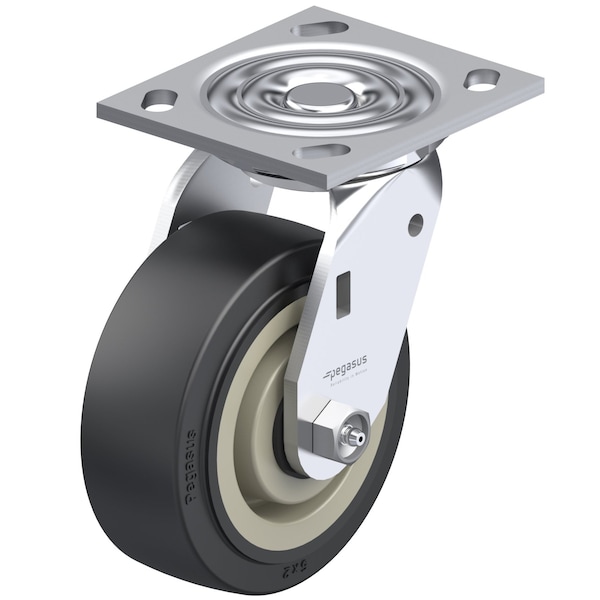

Pegasus Cstr, Swivel Plate, Gray Urethane, 750 lb. P21S-UP050R-14 - main

Cstr, Swivel Plate, Gray Urethane, 750 lb.

  • Mfr # P21S-UP050R-14

  • Zoro # G0249905

product price:  $32.69
/ea

Key Features

Standards
RoHS, ICWM, NSF
Wheel Dia.
5 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Swivel
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-UP050R-14
Zoro #
G0249905
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2 in
Swivel Radius
4-3/16 in
Mounting Plate Size
4" x 4-1/2"
Mounting Plate Thickness
0.236 in
Mounting Height
6-1/2 in

Details

Item
Swivel Caster
Standards
RoHS, ICWM, NSF
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Swivel
Core Color
Gray
Frame Finish
Carbon Steel, Zinc Finish
Tread Color
Gray
Number of Wheels
1
Replacement Wheel
Mfr. No. P-UP-050x020/050R
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Top Plate
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Caster Brake Type
No Brake Included
System of Measurement
Inch
Tread
Standard
Caster Brake Included
No
Extended Lead
No
Caster Frame Material
Steel
ESD Conductive
No
Includes Thread Guards
No
Accessories
Optional: P-DL21-14 (Directional Lock)
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Series
P21 Series
Number of Mounting Holes
4
Tread Shape
Standard
Load Capacity
750 lbs.
Load Rating Range
Medium Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material
Urethane
Wheel Hardness Rating
50-60 Shore D
Wheel Bearing Type
Roller
Operating Temperature Range
-15 Degrees To 160 Degrees F
Wheel/Tread Color
Grey

Description

Cstr,Swivel Plate,Gray Urethane,750 lb.
