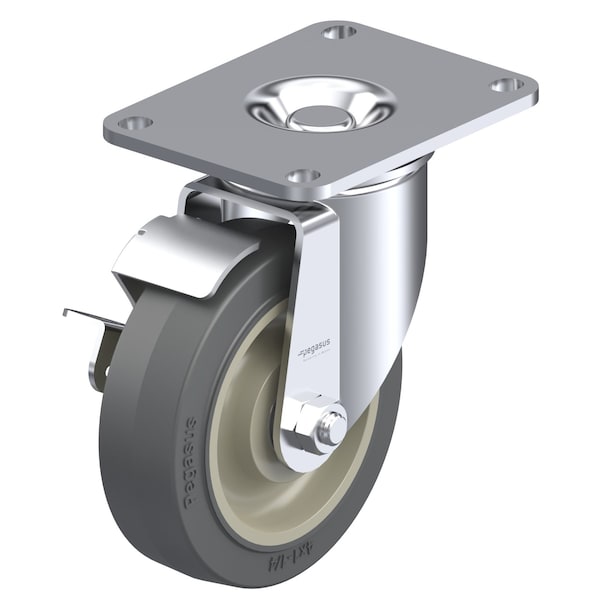

Pegasus Cstr, Swivl Plt, Gray Surlastc, 150 lb., Brk P12S-PRP030D-P2-WB - main

Cstr, Swivl Plt, Gray Surlastc, 150 lb., Brk

  • Mfr # P12S-PRP030D-P2-WB

  • Zoro # G0240814

product price:  $13.65
/ea

Key Features

Replacement Wheel
Mfr. No. P-PRP-030x013/038D
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Tread
Standard
Non-Marking
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-PRP030D-P2-WB
Zoro #
G0240814
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1-1/4 in
Overall Height
4-1/4 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
2-13/16 in
Mounting Plate Size
3-1/8 in x 4-1/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster With Brake
Replacement Wheel
Mfr. No. P-PRP-030x013/038D
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Tread
Standard
Non-Marking
Yes
Standards
RoHS, ICWM, NSF
Includes
Strap Type Brake
Caster Brake Included
Yes
Core Color
Gray
Caster Brake Type
Strap Type Brake
Tread Color
Gray
System of Measurement
Inch
Frame Finish
Zinc Plated
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Mounting Type
Plate
Application
Retail, Industrial, Commercial
Caster Frame Material
Steel
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Load Capacity
200 lb
Swivel Raceway Type
Double Ball
ESD Conductive
No
Tread Shape
Standard
Series
P12 Series
Includes Thread Guards
No
Load Rating Range
Light Duty
Wheel/Tread Material
Thermoplastic Rubber
Wheel Bearing Type
Delrin
Wheel Hardness Rating
85-95 Shore A
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Cstr,Swivl Plt,Gray Surlastc,150 lb.,Brk
