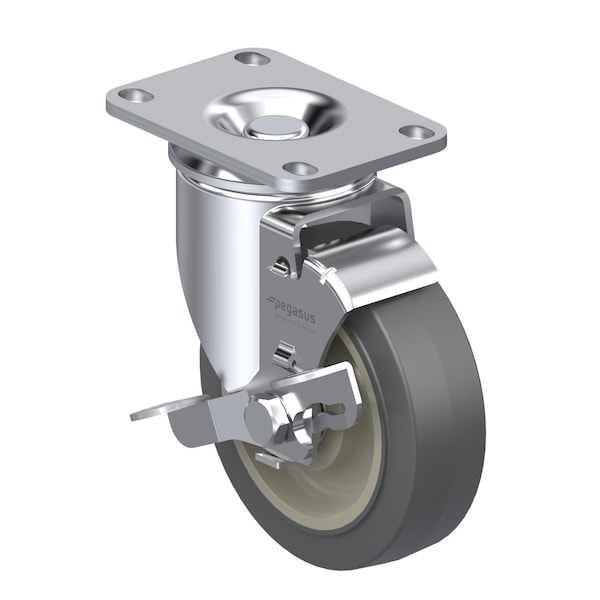

Pegasus Cstr, Swivl Plt, Gray Surlastc, 325 lb., Brk P12S-PRP050B-12-WB - main

Cstr, Swivl Plt, Gray Surlastc, 325 lb., Brk

  • Mfr # P12S-PRP050B-12-WB

  • Zoro # G0240239

product price:  $24.29
/ea

Key Features

Includes
Strap Type Brake
Overall Height
6-3/16 in
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Replacement Wheel
Mfr. No. P-PRP-050x013/038B
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-PRP050B-12-WB
Zoro #
G0240239
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-3/16 in
Wheel Dia.
5 in
Wheel Width
1-1/4 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster With Brake
Includes
Strap Type Brake
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Replacement Wheel
Mfr. No. P-PRP-050x013/038B
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
System of Measurement
Inch
Application
Retail, Industrial, Commercial
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
Yes
Caster Brake Type
Strap Type Brake
Tread
Standard
Caster Sub-Type
Swivel
Standards
RoHS, ICWM, NSF
Tread Color
Gray
Core Color
Gray
Number of Wheels
1
Extended Lead
No
Caster Frame Material
Steel
Series
P12 Series
Tread Shape
Standard
Load Capacity
325 lb
Includes Thread Guards
No
ESD Conductive
No
Wheel Core Material
Polypropylene
Load Rating Range
Light Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Hardness Rating
85-95 Shore A
Wheel Bearing Type
Annular Ball
Wheel/Tread Material
Thermoplastic Rubber
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Cstr,Swivl Plt,Gray Surlastc,325 lb.,Brk
