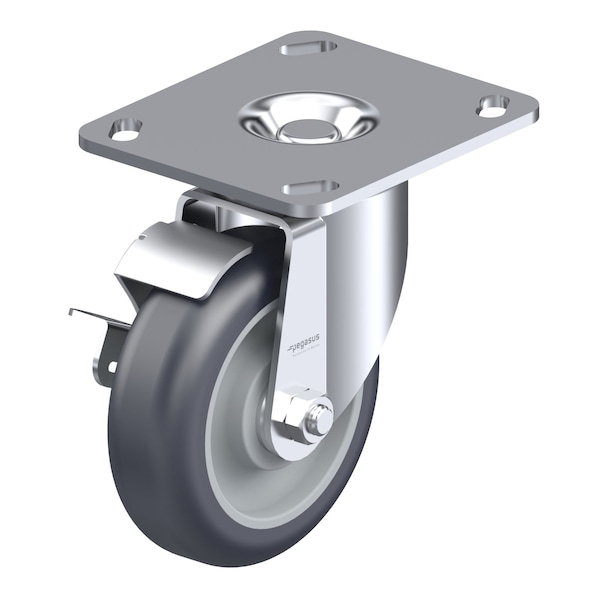

Pegasus Cstr, Swvl Plat, Gray Urethane, 200 lb., Brk P12S-UP030B-P2-WB - main

Cstr, Swvl Plat, Gray Urethane, 200 lb., Brk

  • Mfr # P12S-UP030B-P2-WB

  • Zoro # G0240640

product price:  $14.75
/ea

Key Features

Core Color
Gray
Replacement Wheel
Mfr. No. P-UP-030x013/038B
Tread Color
Gray
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-UP030B-P2-WB
Zoro #
G0240640
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 in
Overall Height
4-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
3-1/8 in x 4-1/8 in

Details

Item
Swivel Caster With Brake
Core Color
Gray
Replacement Wheel
Mfr. No. P-UP-030x013/038B
Tread Color
Gray
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Number of Wheels
1
Non-Marking
Yes
System of Measurement
Inch
Includes
Strap Type Brake
Standards
RoHS, ICWM, NSF
Caster Brake Type
Strap Type Brake
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Caster Brake Included
Yes
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Wheel Core Material
Polypropylene
ESD Conductive
No
Tread Shape
Standard
Load Rating Range
Light Duty
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Series
P12 Series
Number of Mounting Holes
4
Load Capacity
300 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material
Polyurethane
Wheel Bearing Type
Annular Ball
Wheel Hardness Rating
50-60 Shore D
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Swvl Plat,Gray Urethane,200 lb.,Brk
