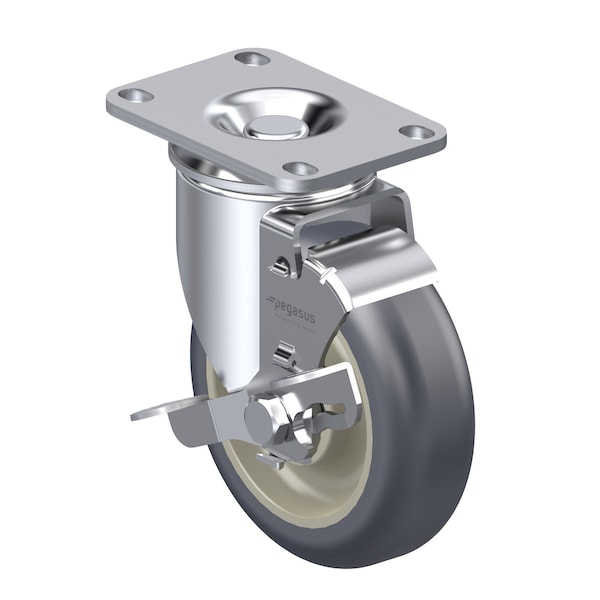

Pegasus Cstr, Swvl Plat, Gray Urethane, 200 lb., Brk P12S-UP030D-12-WB - main

Cstr, Swvl Plat, Gray Urethane, 200 lb., Brk

  • Mfr # P12S-UP030D-12-WB

  • Zoro # G0239755

product price:  $14.49
/ea

Key Features

Wheel Width
1-1/4 in
Overall Height
4-1/8 in
Includes
Strap Type Brake
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-UP030D-12-WB
Zoro #
G0239755
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Overall Height
4-1/8 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
2-13/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster With Brake
Includes
Strap Type Brake
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Number of Wheels
1
Core Color
Gray
Caster Brake Type
Strap Type Brake
System of Measurement
Inch
Tread Color
Gray
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-UP-030x013/038D
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Tread
Standard
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Standards
RoHS, ICWM, NSF
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
Number of Mounting Holes
4
Series
P12 Series
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
300 lb
ESD Conductive
No
Load Rating Range
Light Duty
Tread Shape
Standard
Wheel Hardness Rating
50-60 Shore D
Wheel/Tread Material
Polyurethane
Wheel Bearing Type
Delrin
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Swvl Plat,Gray Urethane,200 lb.,Brk
