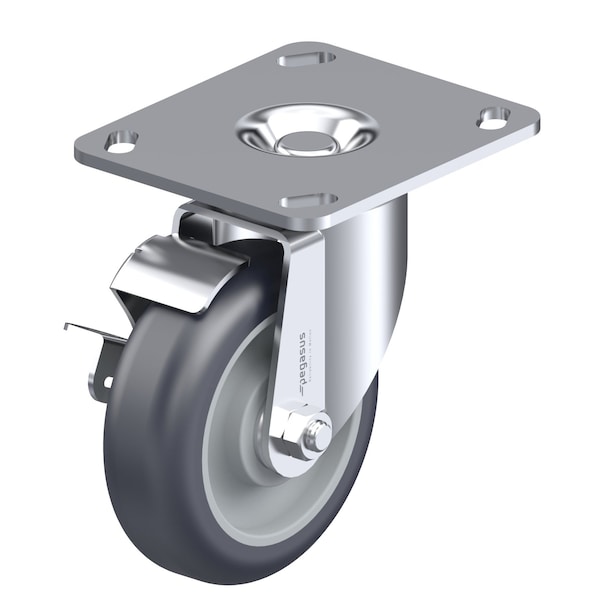

Pegasus Cstr, Swvl Plat, Gray Urethane, 250 lb., Brk P12S-UP035B-P3-WB - main

Cstr, Swvl Plat, Gray Urethane, 250 lb., Brk

  • Mfr # P12S-UP035B-P3-WB

  • Zoro # G0241313

product price:  $16.75
/ea

Key Features

Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Core Color
Gray
Mounting Bolt Dia.
5/16 in
Frame Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-UP035B-P3-WB
Zoro #
G0241313
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Overall Height
4-11/16 in
Wheel Width
1-1/4 in
Wheel Dia.
3-1/2 in
Swivel Radius
3 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
3-3/4 in x 4-3/8 in

Details

Item
Swivel Caster With Brake
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Core Color
Gray
Frame Finish
Zinc Plated
Number of Wheels
1
Tread Color
Gray
System of Measurement
Inch
Non-Marking
Yes
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM, NSF
Includes
Strap Type Brake
Tread
Standard
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Mfr. No. P-UP-035x013/038B
Caster Brake Type
Strap Type Brake
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Rating Range
Light Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Polypropylene
Tread Shape
Standard
Number of Mounting Holes
4
Load Capacity
325 lb
Series
P12 Series
ESD Conductive
No
Wheel Bearing Type
Annular Ball
Wheel Hardness Rating
50-60 Shore D
Wheel/Tread Material
Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Swvl Plat,Gray Urethane,250 lb.,Brk
