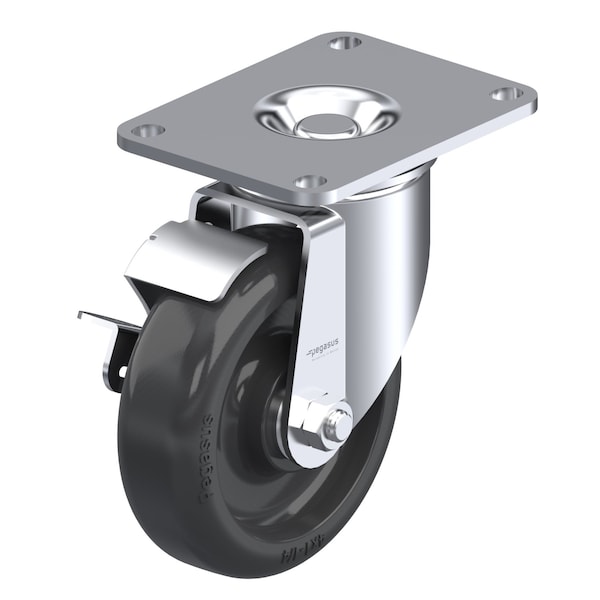

Pegasus Cstr, Swvl Plt, Blck Polyprpyl, 200 lb., Brk P12S-PB030D-P2-WB - main

Cstr, Swvl Plt, Blck Polyprpyl, 200 lb., Brk

  • Mfr # P12S-PB030D-P2-WB

  • Zoro # G0240430

product price:  $12.25
/ea

Key Features

Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4 in
System of Measurement
Inch
Includes
Strap Type Brake
Core Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PB030D-P2-WB
Zoro #
G0240430
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 in
Overall Height
4-1/4 in
Wheel Width
1-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
3-1/8 in x 4-1/8 in

Details

Item
Swivel Caster With Brake
System of Measurement
Inch
Includes
Strap Type Brake
Core Color
Black
Replacement Wheel
Mfr. No. P-PB-030x013/038D
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Non-Marking
Yes
Application
Retail, Industrial, Commercial, Corrosion Resistance
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Caster Mounting Type
Plate
Caster Brake Included
Yes
Tread
Standard
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Caster Brake Type
Strap Type Brake
Standards
RoHS, ICWM, NSF
Tread Color
Black
Caster Frame Material
Steel
Extended Lead
No
Load Rating Range
Light Duty
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Series
P12 Series
Load Capacity
200 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
ESD Conductive
No
Includes Thread Guards
No
Wheel/Tread Material
Polypropylene
Wheel Hardness Rating
60-70 Shore D
Wheel Bearing Type
Delrin
Operating Temperature Range
-20 Degrees To 180 Degrees F

Description

Cstr,Swvl Plt,Blck Polyprpyl,200 lb.,Brk
