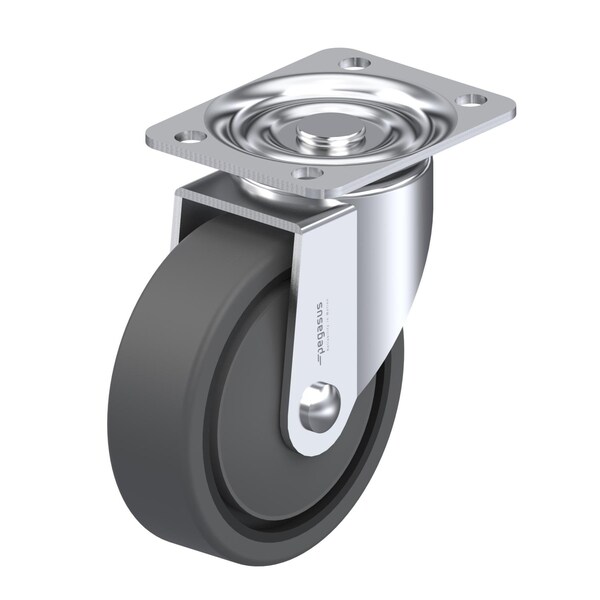

Pegasus Cstr, Swvl Plt, Urthan, 310 lb., Thred Guard P12HS-UP050G-12 - main

Cstr, Swvl Plt, Urthan, 310 lb., Thred Guard

  • Mfr # P12HS-UP050G-12

  • Zoro # G0246003

product price:  $15.39
/ea

Key Features

Non-Marking
Yes
Wheel Width
1-1/4 in
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Tread
Standard
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12HS-UP050G-12
Zoro #
G0246003
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-5/8 in
Wheel Dia.
5 in
Swivel Radius
3-15/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster
Non-Marking
Yes
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Tread
Standard
System of Measurement
Inch
Caster Brake Included
No
Caster Brake Type
No Brake Included
Tread Color
Gray
Number of Wheels
1
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Sub-Type
Swivel
Core Color
Gray
Extended Lead
No
Caster Frame Material
Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Load Rating Range
Light Duty
Swivel Raceway Type
Double Ball
Load Capacity
310 lb
ESD Conductive
No
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Series
P12H Series
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
50-60 Shore D
Wheel Bearing Type
Plain
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Swvl Plt,Urthan,310 lb.,Thred Guard
