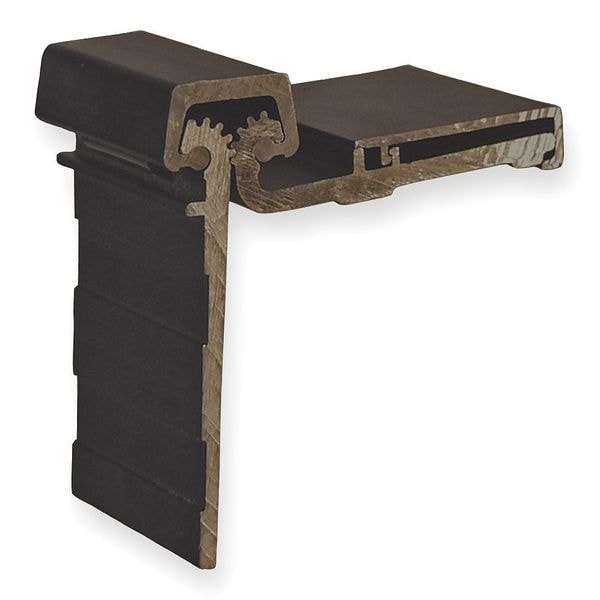

Piano Hinge, Aluminum, Half Surface Mounting, 2 in Leaf W x 2 9/16 in Leaf H, Dark Bronze Anodized
- Mfr # DHS83
- Zoro # G3101034
product price:Â
$
224.99
/ea
Free Shipping & Returns
Key Features
Door Leaf Height
2 9/16 in
Door Leaf Thickness
0.187 in
Door Leaf Width
1 7/8 in
Finish
Dark Bronze Anodized
Holes per Leaf
10
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DHS83
- Zoro #
- G3101034
- UPC #
- -
- Country of Origin
- United States
- Finish
- Dark Bronze Anodized
- Holes per Leaf
- 10
- Load Capacity
- 280 lb
- Material
- Aluminum
- Mounting
- Half Surface
- Orientation
- Non Handed
- Range of Motion
- 180 Degrees
- Features
- Half Surface Units are Designed Mainly for Retrofit Work and are Applied to the Exposed Surface of the Door and the Frame Rabbet
- Item
- Piano Hinge
- Ligature Resistant
- No
- UL Fire Rating
- UL10C
- Holes
- With
- Standards
- BHMA, cULus Listed
- Hardware
- Not included
- Color
- Dark Bronze
- Hand Orientation
- Non-Handed
- Includes Hardware
- Hardware Not Included
- Fire Rating
- 3 hr
- Range of Motion - Maximum
- 180 Degrees
- Number of Holes per Leaf
- 10
- ANSI/BHMA Finish
- Oxidized Satin Bronze-Plated, Oil Rubbed
- Shell Material
- Aluminum
Dimensions
- Door Leaf Height
- 2 9/16 in
- Door Leaf Thickness
- 0.187 in
- Door Leaf Width
- 1 7/8 in
- Required Door Thickness
- 1-3/4 in
- Frame Leaf Height
- 2-9/16 in
- Frame Leaf Width
- 2 in
- Length
- 6 ft 11 in
- Frame Leaf Thickness
- 0.187 in
- Overall Width
- 4 1/2 in
- Width
- 2-1/4"
- Height
- 2-9/16"
- Door Thickness - Maximum
- 2 1/4 in
- Door Thickness - Minimum
- 1 3/4 in
Description
Piano Hinge, Ligature Resistant No, Aluminum Material, 180 Degrees Range of Motion, Dark Bronze Finish, With Holes, 280 lb Load Capacity, Non Handed Orientation, 2 9/16 in Door Leaf Height, 2 9/16 in Frame Leaf Height, 1 7/8 in Door Leaf Width, 2 in Frame Leaf Width, 0.187 in Door Leaf Thickness, 0.187 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Length 6 ft 11 in, Not Included Hardware, 10 Holes per Leaf, Half Surface Mounting, BHMA, cULus Listed Standards, 4 1/2 in Overall Width
