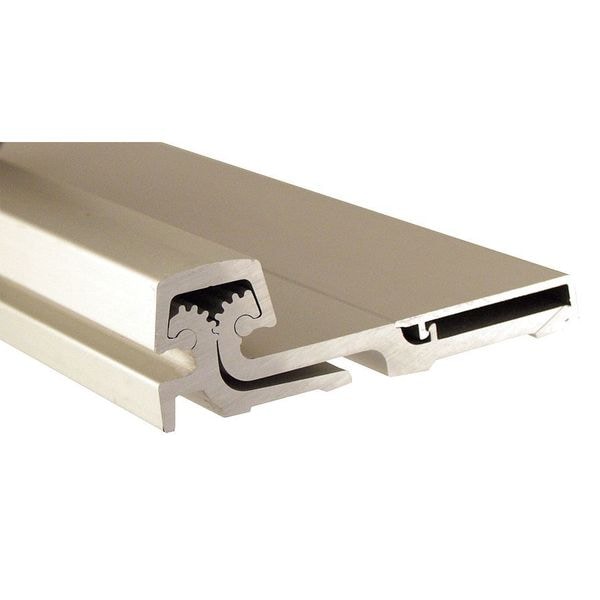

Piano Hinge, Bronze, Full Surface Mounting, 1 1/4 in Leaf W x 83 in Leaf H, Clear Anodized
- Mfr # CFS95CP-HD1
- Zoro # G2149594
product price:Â
$
263.99
/ea
Free Shipping & Returns
Key Features
Door Leaf Height
95 in
Door Leaf Thickness
0.187 in
Door Leaf Width
1 3/8 in
Finish
Clear Anodized
Holes per Leaf
12
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CFS95CP-HD1
- Zoro #
- G2149594
- UPC #
- 086787710110
- Country of Origin
- United States
- Finish
- Clear Anodized
- Holes per Leaf
- 12
- Load Capacity
- 540 lb
- Material
- Bronze
- Mounting
- Full Surface
- Orientation
- Non Handed
- Range of Motion
- 180 Degrees
- Features
- Heavy Duty, Grade1 Capacity; Full Surface Units are Designed Mainly for Retrofit Work and are Applied to the Exposed Surfaces of the Door and Frame
- Item
- Piano Hinge
- Standards
- ANSI/BHMA A156.26, UL Certified
- Ligature Resistant
- No
- Holes
- With
- Hardware
- Not included
- UL Fire Rating
- UL10C
- Color
- Natural
- Hand Orientation
- Non-Handed
- Range of Motion - Maximum
- 180 Degrees
- ANSI/BHMA Finish
- Satin Aluminum, Clear Anodized
- Includes Hardware
- Hardware Not Included
- Fire Rating
- 3 hr
- Number of Holes per Leaf
- 12
Description
Piano Hinge, Ligature Resistant No, Bronze Material, 180 Degrees Range of Motion, Mill Aluminum Finish, With Holes, 540 lb Load Capacity, Non Handed Orientation, 95 in Door Leaf Height, 83 in Frame Leaf Height, 1 3/8 in Door Leaf Width, 1 1/4 in Frame Leaf Width, 0.187 in Door Leaf Thickness, 0.187 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Length 7 ft 11 in, Not Included Hardware, 12 Holes per Leaf, Full Surface Mounting, ANSI/BHMA A156.26, UL Certified Standards
