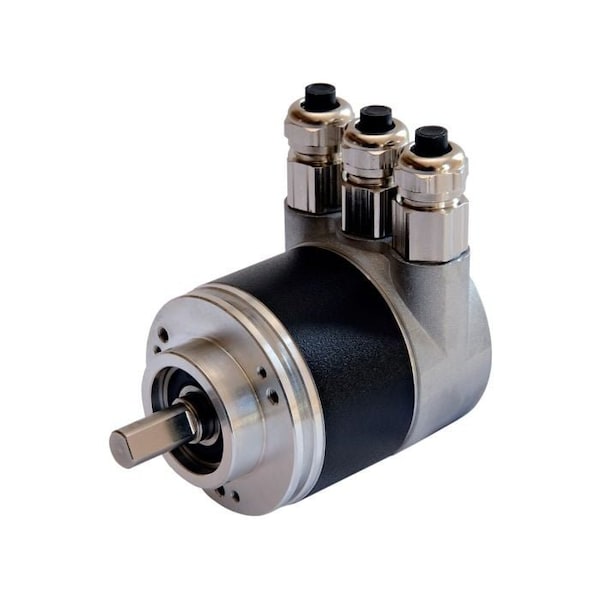

DVS58N-011YYR0BN-0012 Rotary Encoders - Absolute

Encoders, DVS58 Series. Item # DVS58N-011YYR0BN-0012 Absolute Rotary. DVS58 Series Information: Industrial standard housing diameter 58 mm. 16 Bit singleturn. Galvanically isolated DeviceNet interface. Servo or clamping flange. In addition to the CANopen, PROFIBUS and ASInterface rotary encoders, we have broadened our product line of bus-capable absolute encoders with the DVS58 for DeviceNet.Absolute encoders deliver an absolute step value for each angle setting. All these values are represented by code samples of one or more code disks.The code disks are screened by an infrared LED and the bit obtained sample is detected by means of an optical array.Its signals are electronically amplified and are forwarded on to the interface for processing.The absolute encoder has a maximum basic resolution of 65536 steps per revolution (16 Bits).The integrated CAN bus interface of the absolute encoder supports all DeviceNet functions.The following operating modes can be programmed,and can selectively be turned on or off:. Polled mode. Cyclic Mode. Change of state mode. The device is designed for shaft mounting and is available in servo flange or clamping flange design.
