Shop U.S. MOTORS

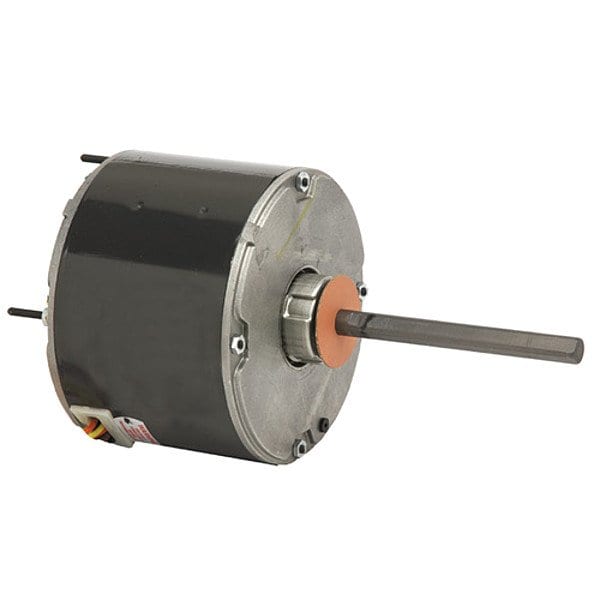

Condenser Fan Motor, 1/3 hp

  • Mfr # 1877

  • Zoro # G0215086

product price:  $124.13
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1877
Zoro #
G0215086
UPC #
786382001827
Country of Origin
Mexico

Dimensions

Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Overall Length
10 1/16 in
Shaft Dia.
1/2 in
Shaft Length
5 in
Lead Length
30 in
Length Less Shaft
5 9/16 in
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Wire Rope Length
10 1/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CWLE
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Mounting Position
All Angle
Motor Bearings
Ball
Nominal Efficiency
69.7 %
Capacitor Required
Capacitor Not Included
Stud Quantity
4
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Full Load Amps
2.0 A
Motor Service Factor
1
Standards
CSA (156060), UL (E22922)
Duty
Continuous
Item
Condenser Fan Motor
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Nameplate RPM
1,075
Max. Ambient Temp.
60 Degrees C
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Shaft Design
Flat
Ins. Class
B
Motor Sub Application
Condenser Fan
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Ambient Temperature - Maximum
60 Degrees C
Drive Type
Direct Drive
Shaft Design
Flat
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Frame Material
Steel
Mounting Position
All Angle
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
2.0 A
Number of Speeds
1
Bearing Type
Ball

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
