  9. 105F-M1Sc2U Ethernet Switch
This item is Discontinued.

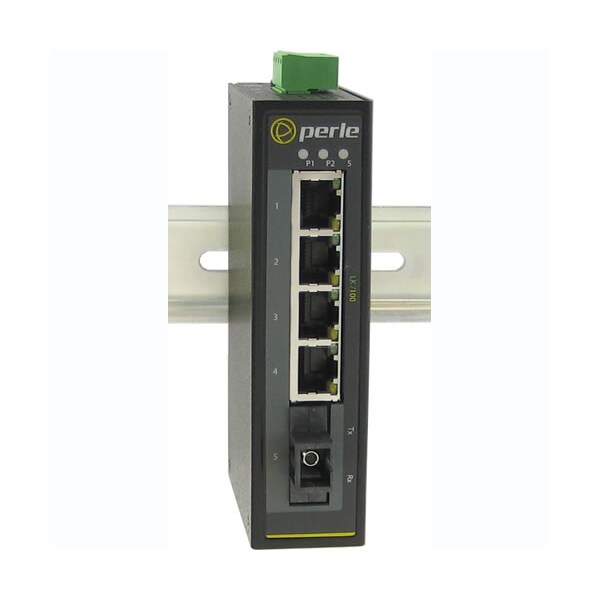

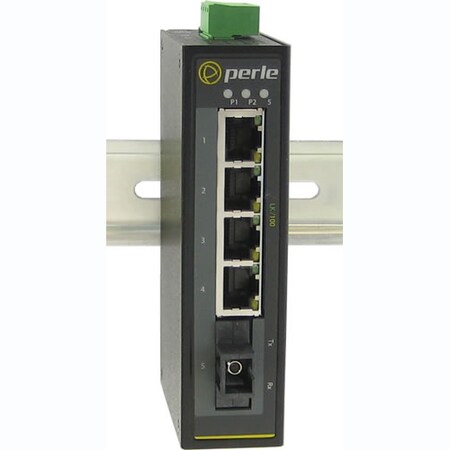

Perle Systems 105F-M1Sc2U Ethernet Switch 07010110

105F-M1Sc2U Ethernet Switch (Discontinued)

  • Mfr # 07010110
  • Zoro # G4401734
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010110
Zoro #
G4401734
UPC #
679202101107
Country of Origin
Taiwan, Province of China

Dimensions

Width
4.5"
Depth
2.8"
Height
1.2"

Details

Item
Ethernet Switch
Mounting
Panel, Rail, Wall
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Power Source
Power Supply
Product Type
Ethernet Switch
SC Port Type
Simplex
Total Number of Network Ports
5
Stack Port
No
MTBF
717100 Hour
Management Port
No
USB
No
Fiber Mode Supported
Multi-mode
Number of Network (RJ-45) Ports
4
Number of SC Ports
1
Port/Expansion Slot Details
(5) Fast Ethernet Network
Ethernet Technology
Fast Ethernet
Redundant Power Supply Supported
Yes
Green Environmental Attribute
Environmentally Friendly
Media Type Supported
Optical Fiber, Twisted Pair
Manageable
No
Network Technology
10/100Base-TX, 100Base-BX
Uplink Port
No
PoE (RJ-45) Port
No

Description

IDS-105F-M1SC2U Industrial Switch: 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-BX, 1310nm TX / 1550nm RX single strand multimode port with simplex (BIDI) SC connector [ up to 5km/3.1 miles ]. 0 to 60C operating temperature.
