This item is Discontinued.

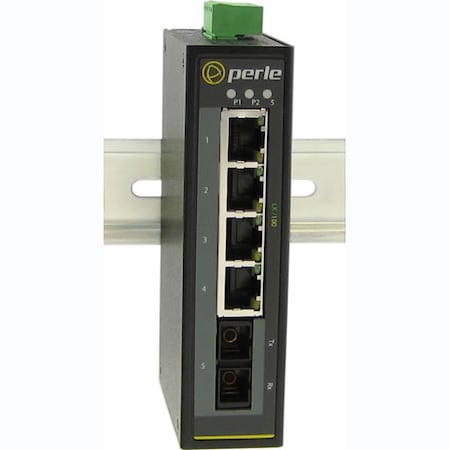

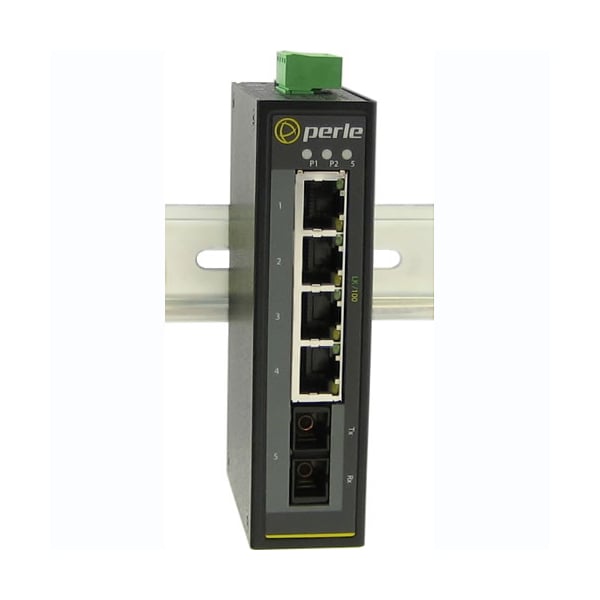

Perle Systems 105F-M2Sc2Xt Ethernet Switch 07010200

105F-M2Sc2Xt Ethernet Switch (Discontinued)

  • Mfr # 07010200
  • Zoro # G4411726
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010200
Zoro #
G4411726
UPC #
679202102005
Country of Origin
Taiwan, Province of China

Dimensions

Width
4.5"
Depth
2.8"
Height
1.2"

Details

Item
Ethernet Switch
Standards
IEEE Standards: 802.3, 802.3x, 802.3uSafety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz ; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Mounting
Rail, Wall, Panel
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Product Type
Ethernet Switch
Power Source
Power Supply
Number of Network (RJ-45) Ports
4
Network Technology
100Base-TX, 100Base-FX
PoE (RJ-45) Port
No
Total Number of Network Ports
5
Redundant Power Supply Supported
Yes
MTBF
717100 Hour
SC Port Type
Duplex
Management Port
No
Uplink Port
No
Ethernet Technology
Fast Ethernet
Media Type Supported
Optical Fiber, Twisted Pair
Stack Port
No
Manageable
No
Green Environmental Attribute
Environmentally Friendly
Fiber Mode Supported
Multi-mode
USB
No
Number of SC Ports
1
Port/Expansion Slot Details
(5) Fast Ethernet Network

Description

IDS-105F-M2SC2-XT Industrial Switch: 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ]. -40 to 75C industrial extended operating temperature.
