This item is Discontinued.
Perle Systems 105F-S1Sc20Uxt Ethernet Switch 07010260

105F-S1Sc20Uxt Ethernet Switch (Discontinued)

  • Mfr # 07010260
  • Zoro # G4389597
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010260
Zoro #
G4389597
UPC #
679202102609
Country of Origin
Taiwan, Province of China

Dimensions

Depth
2.8"
Width
4.5"
Height
1.2"

Details

Item
Ethernet Switch
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Mounting
Wall, Rail, Panel
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Product Type
Ethernet Switch
Power Source
Power Supply
Ethernet Technology
Fast Ethernet
Port/Expansion Slot Details
(5) Fast Ethernet Network
Green Environmental Attribute
Environmentally Friendly
Redundant Power Supply Supported
Yes
Number of Network (RJ-45) Ports
4
Manageable
No
Fiber Mode Supported
Single-mode
Number of SC Ports
1
Management Port
No
SC Port Type
Simplex
Stack Port
No
Total Number of Network Ports
5
USB
No
MTBF
717100 Hour
Media Type Supported
Twisted Pair, Optical Fiber
Uplink Port
No
Network Technology
10/100Base-TX, 100Base-BX
PoE (RJ-45) Port
No

Description

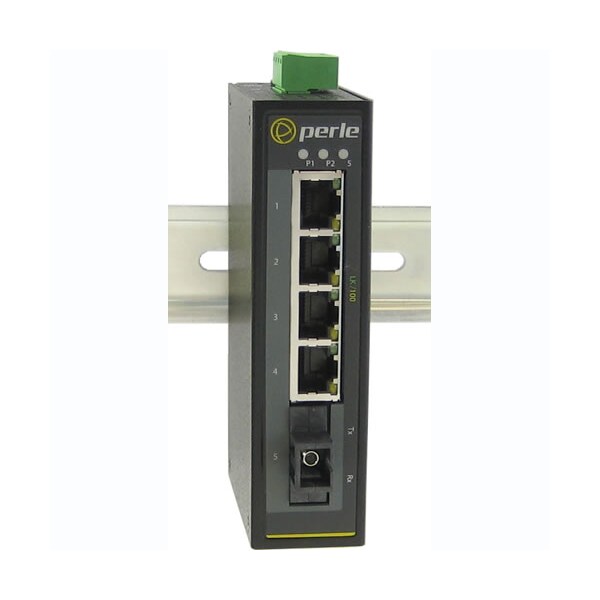

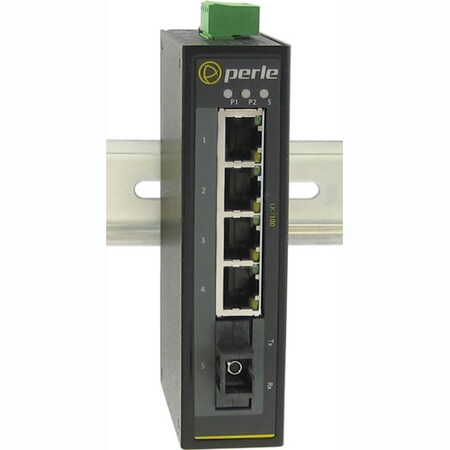

IDS-105F-S1SC20U-XT Industrial Switch: 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-BX, 1310nm TX / 1550nm RX single strand single mode port with simplex (BIDI) SC connector [ 20km/12.4 miles ]. -40 to 75C industrial extended operating temperature.
