This item is Discontinued.

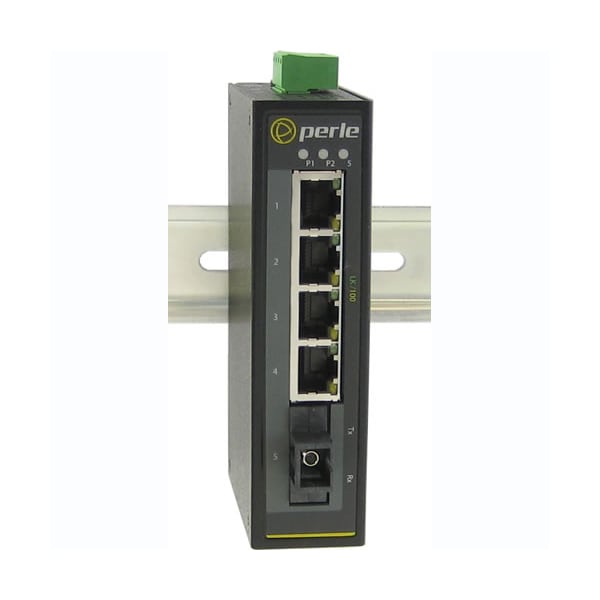

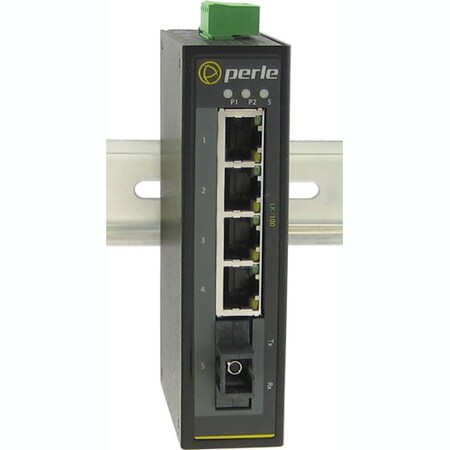

Perle Systems 105F-S1Sc40D Ethernet Switch 07010180

105F-S1Sc40D Ethernet Switch (Discontinued)

  • Mfr # 07010180
  • Zoro # G4402495
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010180
Zoro #
G4402495
UPC #
679202101800
Country of Origin
Taiwan, Province of China

Dimensions

Height
1.2"
Width
4.5"
Depth
2.8"

Details

Item
Ethernet Switch
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Mounting
Rail, Panel, Wall
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Power Source
Power Supply
Product Type
Ethernet Switch
Redundant Power Supply Supported
Yes
Uplink Port
No
Ethernet Technology
Fast Ethernet
USB
No
Management Port
No
Total Number of Network Ports
5
Media Type Supported
Optical Fiber, Twisted Pair
MTBF
717100 Hour
Network Technology
10/100Base-TX, 100Base-BX
Number of Network (RJ-45) Ports
4
PoE (RJ-45) Port
No
Green Environmental Attribute
Environmentally Friendly
Port/Expansion Slot Details
(5) Fast Ethernet Network
Stack Port
No
Fiber Mode Supported
Single-mode
SC Port Type
Simplex
Number of SC Ports
1
Manageable
No

Description

IDS-105F-S1SC40D Industrial Switch: 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-BX, 1550nm TX / 1310nm RX single strand single mode port with simplex (BIDI) SC connector [ 40km/24.9 miles ]. 0 to 60C operating temperature.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
