This item is Discontinued.

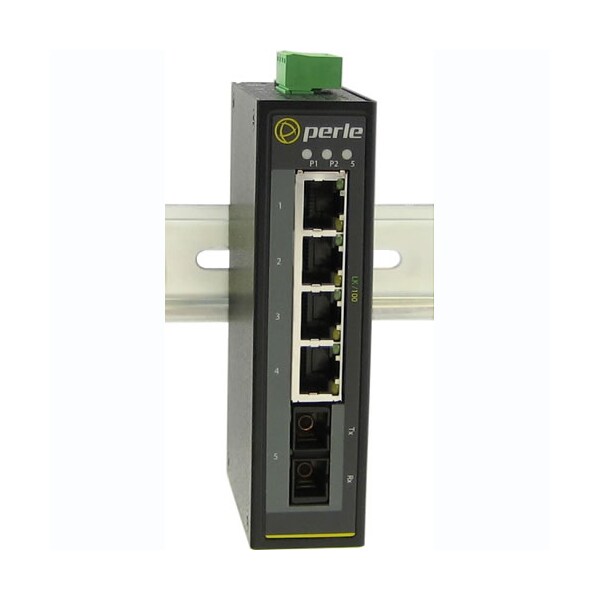

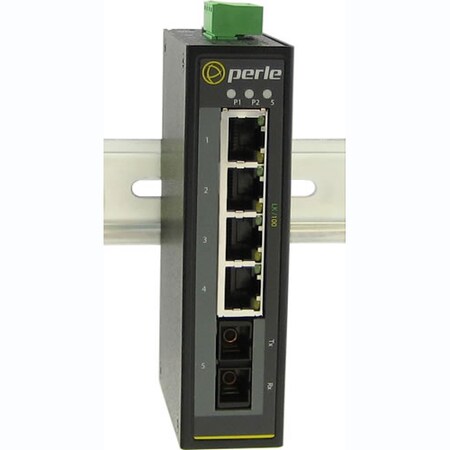

Perle Systems 105F-S2Sc20Xt Ethernet Switch 07010220

105F-S2Sc20Xt Ethernet Switch (Discontinued)

  • Mfr # 07010220
  • Zoro # G4413345
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010220
Zoro #
G4413345
UPC #
679202102203
Country of Origin
Taiwan, Province of China

Dimensions

Width
4.5"
Height
1.2"
Depth
2.8"

Details

Item
Ethernet Switch
Mounting
Wall, Panel, Rail
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Standards
IEEE Standards: 802.3u, 802.3xSafety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 (Industrial)Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 (General Immunity in Industrial Environments)Industrial Safety: UL508 (Safety standard for Industrial Control Equipment)Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Power Source
Power Supply
Product Type
Ethernet Switch
Ethernet Technology
Fast Ethernet
Network Technology
100Base-LX, 10/100Base-TX
Green Environmental Attribute
Environmentally Friendly
PoE (RJ-45) Port
No
USB
No
Port/Expansion Slot Details
(5) Fast Ethernet Network
Fiber Mode Supported
Single-mode
Number of SC Ports
1
Manageable
No
Total Number of Network Ports
5
Stack Port
No
MTBF
717100 Hour
Redundant Power Supply Supported
Yes
Number of Network (RJ-45) Ports
4
Uplink Port
No
SC Port Type
Duplex
Media Type Supported
Optical Fiber, Twisted Pair
Management Port
No

Description

IDS-105F-S2SC20-XT Industrial Switch: 4 x 10/100Base-TX RJ-45 ports and 1 x 100Base-LX, 1310nm single mode port with duplex SC connector [20 km/ 12.4 miles ]. -40 to 75C industrial extended operating temperature.
