This item is Discontinued.

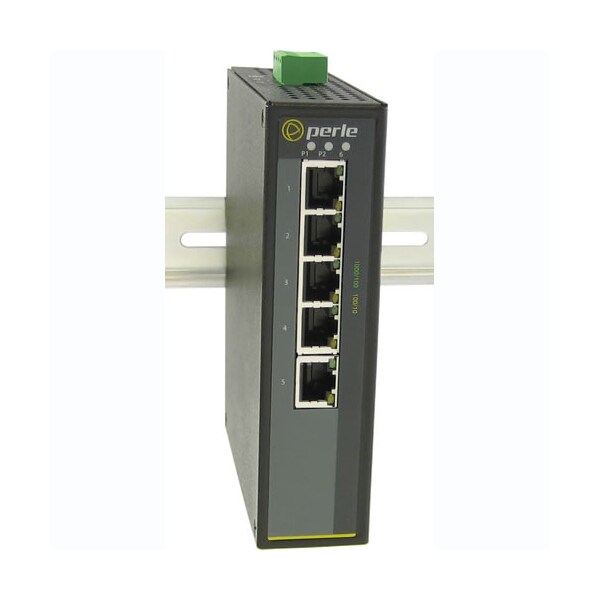

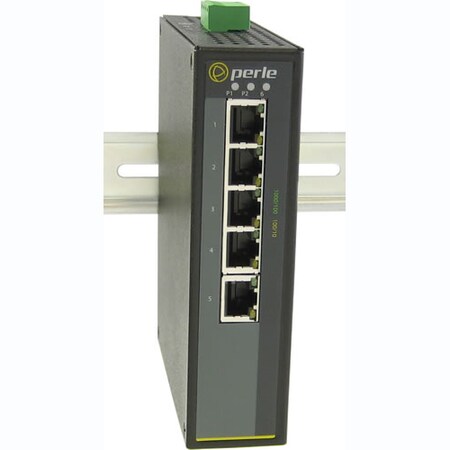

Perle Systems 105G-S1Sc20U Ethernet Switch 07010980

105G-S1Sc20U Ethernet Switch (Discontinued)

  • Mfr # 07010980
  • Zoro # G4416319
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010980
Zoro #
G4416319
UPC #
679202109806
Country of Origin
Taiwan, Province of China

Dimensions

Width
4.5"
Height
1.2"
Depth
2.8"

Details

Item
Ethernet Switch
Standards
IEEE Standards: 802.3, 802.3u, 802.3x, 802.3ab, 802.3azSafety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz ; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Mounting
Rail, Panel, Wall
Includes
DIN Rail Attachment, Installation Guide, Terminal Block
Product Type
Ethernet Switch
Power Source
Power Supply
Green Environmental Attribute
Environmentally Friendly
Port/Expansion Slot Details
(6) Gigabit Ethernet Network
Total Number of Network Ports
6
Number of SC Ports
1
SC Port Type
Simplex
Manageable
No
PoE (RJ-45) Port
No
Network Technology
10/100/1000Base-T, 1000Base-BX
Media Type Supported
Optical Fiber, Twisted Pair
Redundant Power Supply Supported
Yes
Number of Network (RJ-45) Ports
5
Fiber Mode Supported
Single-mode
MTBF
522423 Hour
Uplink Port
No
USB
No
Management Port
No
Ethernet Technology
Gigabit Ethernet
Stack Port
No

Description

IDS-105G-S1SC20U Industrial Gigabit Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports and 1 x 1000Base-BX, 1310nm TX / 1490nm RX single strand single mode port with simplex (BIDI) SC connector [ 20km/12.4 miles ]. 0 to 60C operating temperature.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
