This item is Discontinued.

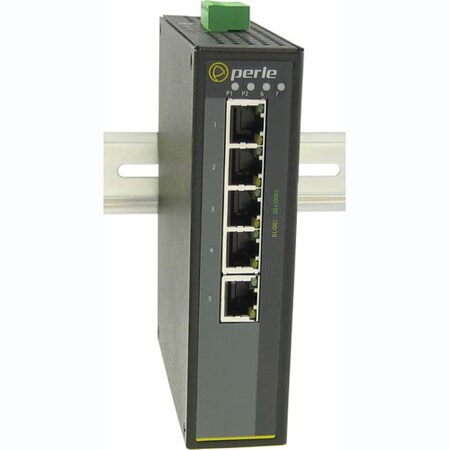

Perle Systems 105G-S2Sc160 Ethernet Switch 07010940

105G-S2Sc160 Ethernet Switch (Discontinued)

  • Mfr # 07010940
  • Zoro # G4405356
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010940
Zoro #
G4405356
UPC #
679202109400
Country of Origin
Taiwan, Province of China

Dimensions

Width
5.4"
Height
1.4"
Depth
4.4"

Details

Item
Ethernet Switch
Mounting
Rail, Wall, Panel
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Standards
IEEE Standards: 802.3, 802.3u, 802.3x, 802.3ab Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Power Source
Power Supply
Product Type
Ethernet Switch
Number of Network (RJ-45) Ports
5
Green Environmental Attribute
Environmentally Friendly
Network Technology
10/100/1000Base-T, 100Base-ZX
Media Type Supported
Optical Fiber, Twisted Pair
SC Port Type
Duplex
Stack Port
No
Ethernet Technology
Gigabit Ethernet
Management Port
No
Number of SC Ports
1
Port/Expansion Slot Details
(6) Gigabit Ethernet Network
Total Number of Network Ports
6
PoE (RJ-45) Port
No
Manageable
No
USB
No
Uplink Port
No
MTBF
522423 Hour
Redundant Power Supply Supported
Yes
Fiber Mode Supported
Single-mode

Description

IDS-105G-S2SC160 Industrial Gigabit Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports and 1 x 1000Base-ZX, 1550nm single mode port with duplex SC connector [160 km/ 100 miles ]. 0 to 60C operating temperature.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
