This item is Discontinued.

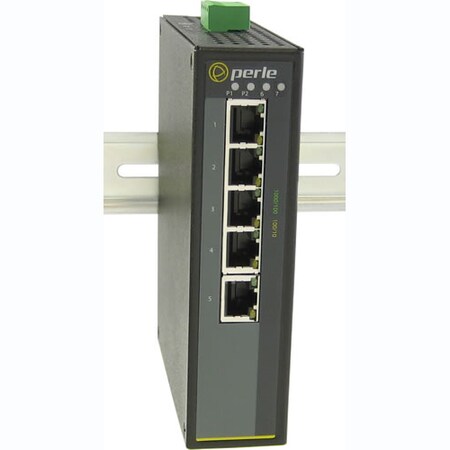

Perle Systems 105G-S2St10 Ethernet Switch 07010870

105G-S2St10 Ethernet Switch (Discontinued)

  • Mfr # 07010870
  • Zoro # G4416574
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010870
Zoro #
G4416574
UPC #
679202108700
Country of Origin
Taiwan, Province of China

Dimensions

Depth
2.8"
Width
4.5"
Height
1.2"

Details

Item
Ethernet Switch
Mounting
Wall, Rail, Panel
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Standards
IEEE Standards: 802.3, 802.3u, 802.3ab, 802.3x, 802.3azSafety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz ; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Power Source
Power Supply
Product Type
Ethernet Switch
PoE (RJ-45) Port
No
ST Port Type
Duplex
Number of ST Ports
1
Stack Port
No
Network Technology
1000Base-LX/LH, 10/100/1000Base-T
USB
No
Media Type Supported
Twisted Pair, Optical Fiber
Manageable
No
Uplink Port
No
Redundant Power Supply Supported
Yes
Number of Network (RJ-45) Ports
5
Ethernet Technology
Gigabit Ethernet
Port/Expansion Slot Details
(6) Gigabit Ethernet Network
MTBF
522423 Hour
Green Environmental Attribute
Environmentally Friendly
Management Port
No
Total Number of Network Ports
6
Fiber Mode Supported
Single-mode

Description

IDS-105G-S2ST10 Industrial Gigabit Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports and 1 x 1000Base-LX/LH, 1310nm single mode port with duplex ST connector [10 km/ 6.2 miles ]. 0 to 60C operating temperature.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
