This item is Discontinued.

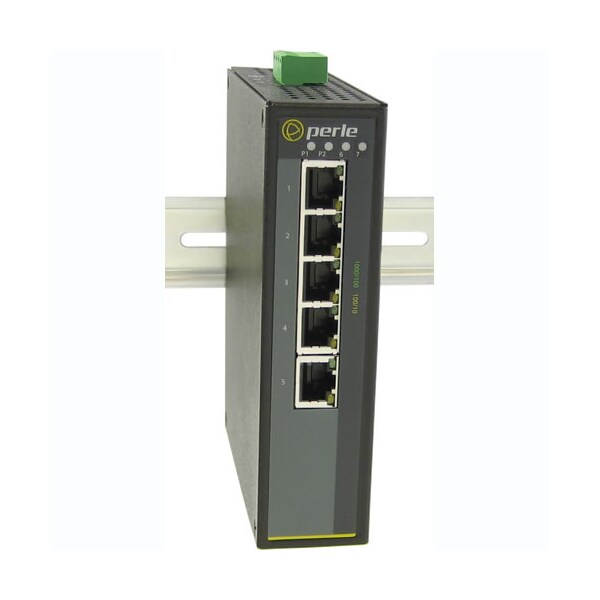

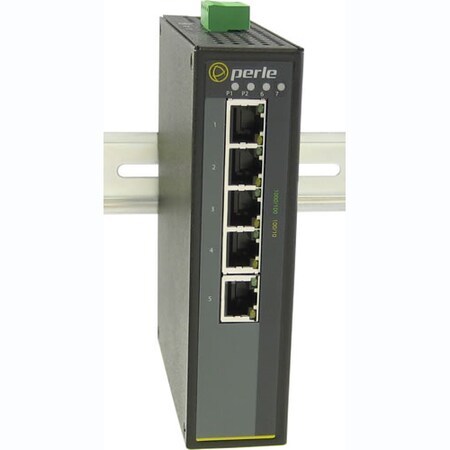

Perle Systems 105G-S2St70 Ethernet Switch 07010910

105G-S2St70 Ethernet Switch (Discontinued)

  • Mfr # 07010910
  • Zoro # G4413564
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010910
Zoro #
G4413564
UPC #
679202109103
Country of Origin
Taiwan, Province of China

Dimensions

Height
1.4"
Width
4.4"
Depth
5.4"

Details

Item
Ethernet Switch
Mounting
Panel, Rail, Wall
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Standards
IEEE Standards: 802.3, 802.3u, 802.3x, 802.3ab Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Power Source
Power Supply
Product Type
Ethernet Switch
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T, 1000Base-ZX
Media Type Supported
Optical Fiber, Twisted Pair
Number of ST Ports
1
Stack Port
No
MTBF
522423 Hour
Total Number of Network Ports
5
Management Port
No
Number of Network (RJ-45) Ports
4
USB
No
Port/Expansion Slot Details
(5) Gigabit Ethernet Network
Uplink Port
No
Redundant Power Supply Supported
Yes
Manageable
No
Green Environmental Attribute
Environmentally Friendly
ST Port Type
Duplex
Fiber Mode Supported
Single-mode

Description

IDS-105G-S2ST70 Industrial Gigabit Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports and 1 x 1000Base-ZX, 1550nm single mode port with duplex ST connector [70 km/ 43.5 miles ]. 0 to 60C operating temperature.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
