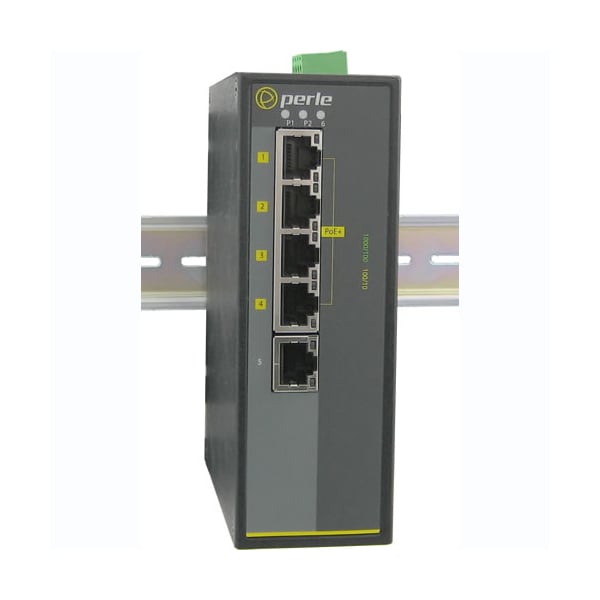

Perle Systems 105Gpps1Sc10Dx Ethernet Switch 07012020 - main

105Gpps1Sc10Dx Ethernet Switch

  • Mfr # 07012020

  • Zoro # G4393675

product price: $1,099.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
24 V DC
Standards
ECCN, HTSUS Number: 8517.62.0050, Energy Efficient Ethernet (EEE) as per 802.3azIEEE Standards: 802.3af/at, 802.3 for 10Base-T, 802.3u for 100Base-TX and 100Base-FX, 802.3ab for 1000Base-T, 802.3x for Flow Control, 802.3af Power Over Ethernet, 802.3at Power Over EthernetSafety :UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial)Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Industrial Safety: UL508Laser Safety: EN 60825-1, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11
Depth
6.7"
Height
1.4"
Width
10.2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07012020
Zoro #
G4393675
UPC #
679202120207
Country of Origin
Taiwan, Province of China

Dimensions

Depth
6.7"
Height
1.4"
Width
10.2"

Details

Item
Ethernet Switch
Input Voltage
24 V DC
Standards
ECCN, HTSUS Number: 8517.62.0050, Energy Efficient Ethernet (EEE) as per 802.3azIEEE Standards: 802.3af/at, 802.3 for 10Base-T, 802.3u for 100Base-TX and 100Base-FX, 802.3ab for 1000Base-T, 802.3x for Flow Control, 802.3af Power Over Ethernet, 802.3at Power Over EthernetSafety :UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial)Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Industrial Safety: UL508Laser Safety: EN 60825-1, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11
Mounting
Rail
Includes
IDS-105GPP-S1SC10D-XT - Industrial Ethernet Switch with Power Over Ethernet, Terminal Block, Installation Guide, DIN Rail Attachment
Product Type
Ethernet Switch
Power Source
Power Supply
Media Type Supported
Twisted Pair, Optical Fiber
Uplink Port
No
USB
No
Green Environmental Attribute
Environmentally Friendly
Number of PoE (RJ-45) Ports
4
Port/Expansion Slot Details
6 x Gigabit Ethernet Network
Ethernet Technology
Gigabit Ethernet
Management Port
No
Total Number of Network Ports
6
Network Technology
1000Base-BX, 10/100/1000Base-T
PoE (RJ-45) Port
Yes
Redundant Power Supply Supported
Yes
Number of Network (RJ-45) Ports
1
Mounting Type
Rail-mountable
Environmentally Friendly
Yes
Layer Supported
2

Description

IDS-105GPP-S1SC10D-XT Industrial PoE Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports, 4 of which are PoE/PoE+ capable and 1 x 1000Base-BX, 1490nm TX / 1310nm RX single strand single mode port with simplex (BIDI) SC connector [ 10km/6.2 miles ]. -40 to 75C industrial extended operating temperature.
