This item is Discontinued.

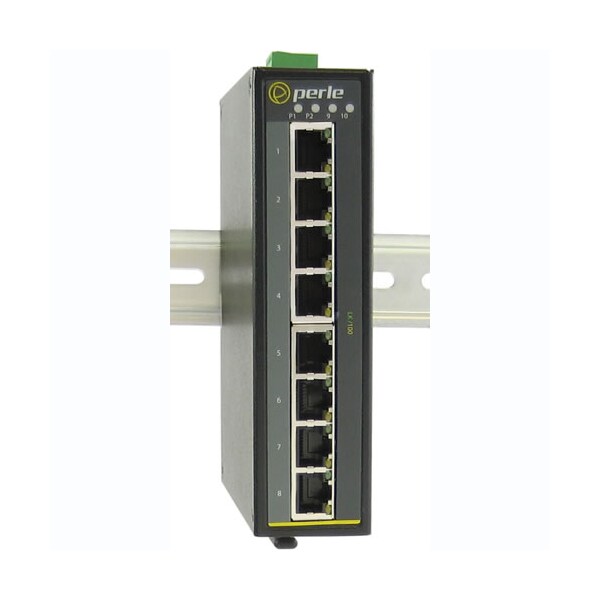

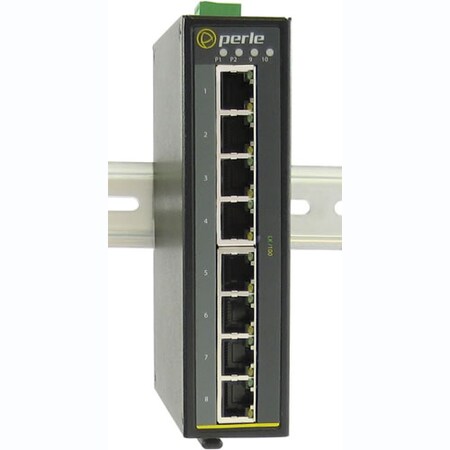

Perle Systems 108F-Dm2Sc2Xt Ethernet Switch 07010730

108F-Dm2Sc2Xt Ethernet Switch (Discontinued)

  • Mfr # 07010730
  • Zoro # G4413144
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010730
Zoro #
G4413144
UPC #
679202107307
Country of Origin
Taiwan, Province of China

Dimensions

Depth
4.4"
Width
5.4"
Height
1.4"

Details

Item
Ethernet Switch
Mounting
Panel, Wall, Rail
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Product Type
Ethernet Switch
Power Source
Power Supply
SC Port Type
Duplex
PoE (RJ-45) Port
No
Stack Port
No
MTBF
347577 Hour
Redundant Power Supply Supported
Yes
USB
No
Fiber Mode Supported
Multi-mode
Manageable
No
Ethernet Technology
Fast Ethernet
Port/Expansion Slot Details
(10) Fast Ethernet Network
Media Type Supported
Twisted Pair, Optical Fiber
Management Port
No
Uplink Port
Yes
Green Environmental Attribute
Environmentally Friendly
Number of Network (RJ-45) Ports
8
Number of SC Ports
2
Total Number of Network Ports
10
Network Technology
10/100Base-TX, 100Base-FX

Description

IDS-108F-DM2SC2-XT Industrial Switch: 8 x 10/100Base-TX RJ-45 ports and 2 x 100Base-FX, 1310nm multimode port with duplex SC connectors [ up to 5km/3.1 miles ]. -40 to 75C industrial extended operating temperature.
