This item is Discontinued.

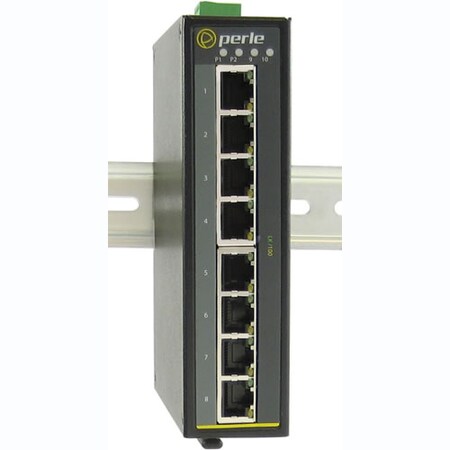

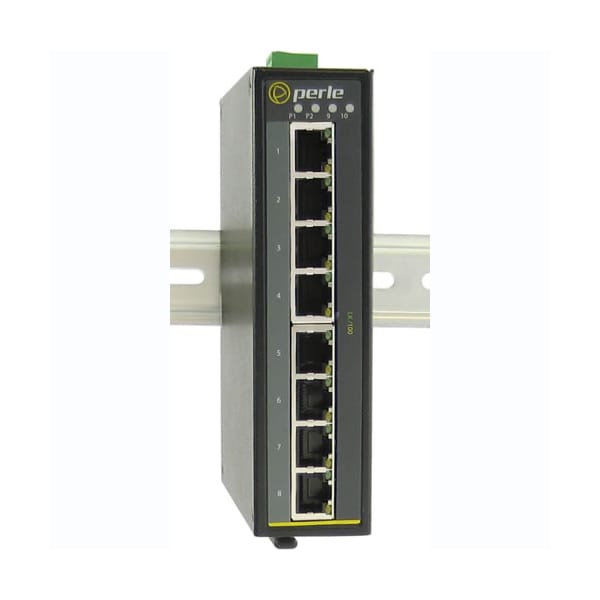

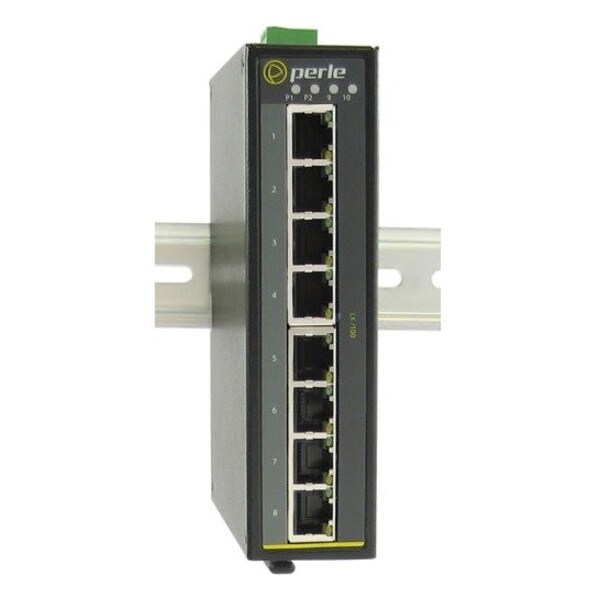

Perle Systems 108F-Ds2St20Xt Ethernet Switch 07010760

This item is Discontinued.

Perle Systems

108F-Ds2St20Xt Ethernet Switch (Discontinued)

Mfr # 07010760
Zoro # G4410588
UPC # 679202107604
Country of Origin Taiwan, Province of China
Category Ethernet Switches
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
07010760
Zoro #
G4410588
UPC #
679202107604
Country of Origin
Taiwan, Province of China

Dimensions

Width
1.4"
Height
5.4"
Depth
4.4"

Details

Item
Ethernet Switch
Standards
UL508 (Safety standard for Industrial Control Equipment )IEEE Standards: 802.3, 802.3u, 802.3xSafety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial)Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments)Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Mounting
Panel, Wall, Rail
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Product Type
Ethernet Switch
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Number of ST Ports
2
MTBF
347577 Hour
Management Port
No
PoE (RJ-45) Port
No
Stack Port
No
Network Technology
100Base-LX, 10/100Base-TX
ST Port Type
Duplex
Manageable
No
Ethernet Technology
Fast Ethernet
Total Number of Network Ports
10
Green Environmental Attribute
Environmentally Friendly
Port/Expansion Slot Details
(10) Fast Ethernet Network
Media Type Supported
Twisted Pair, Optical Fiber
USB
No
Fiber Mode Supported
Single-mode
Number of Network (RJ-45) Ports
8
Uplink Port
No

Description

IDS-108F-DS2ST20-XT Industrial Switch: 8 x 10/100Base-TX RJ-45 ports and 2 x 100Base-LX, 1310nm single mode port with duplex ST connectors [20 km/ 12.4 miles ]. -40 to 75C industrial extended operating temperature.
