This item is Discontinued.

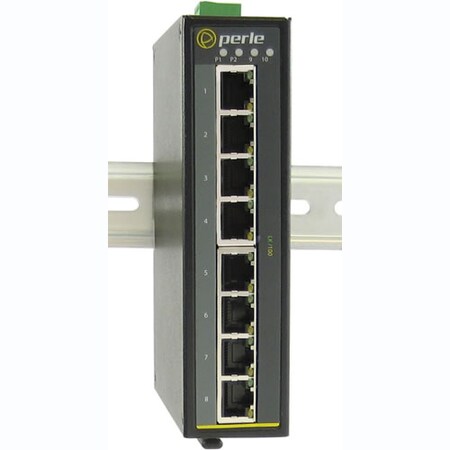

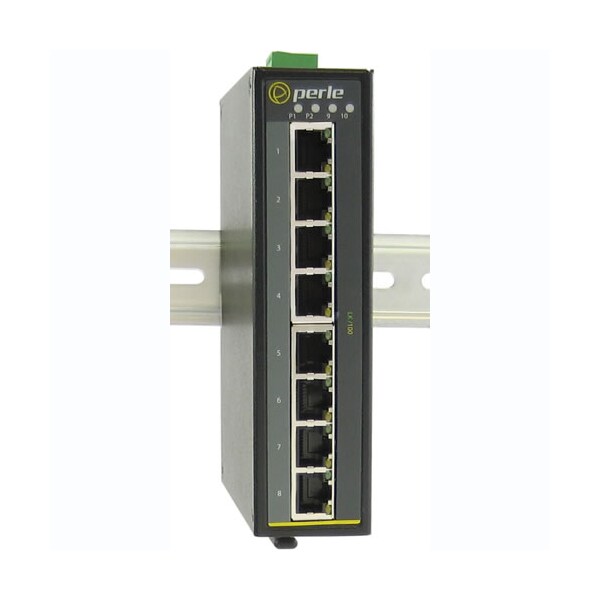

Perle Systems 108F-Ds2St40Xt Ethernet Switch 07010780

108F-Ds2St40Xt Ethernet Switch (Discontinued)

  • Mfr # 07010780
  • Zoro # G4413150
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010780
Zoro #
G4413150
UPC #
679202107802
Country of Origin
Taiwan, Province of China

Dimensions

Depth
4.4"
Width
5.4"
Height
1.4"

Details

Item
Ethernet Switch
Mounting
Panel, Rail, Wall
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, CE Mark, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Power Source
Power Supply
Product Type
Ethernet Switch
Manageable
No
Uplink Port
Yes
Ethernet Technology
Fast Ethernet
Redundant Power Supply Supported
Yes
Number of ST Ports
2
Port/Expansion Slot Details
(10) Fast Ethernet Network
Total Number of Network Ports
10
ST Port Type
Duplex
Fiber Mode Supported
Single-mode
USB
No
Management Port
No
PoE (RJ-45) Port
No
MTBF
347577 Hour
Number of Network (RJ-45) Ports
8
Green Environmental Attribute
Environmentally Friendly
Stack Port
No
Network Technology
100Base-LX, 10/100Base-TX
Media Type Supported
Twisted Pair, Optical Fiber

Description

IDS-108F-DS2ST40-XT Industrial Switch: 8 x 10/100Base-TX RJ-45 ports and 2 x 100Base-LX, 1310nm single mode port with duplex ST connectors [40 km/ 24.9 miles ]. -40 to 75C industrial extended operating temperature.
