This item is Discontinued.

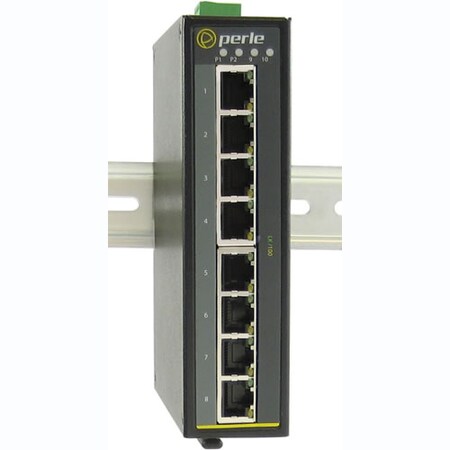

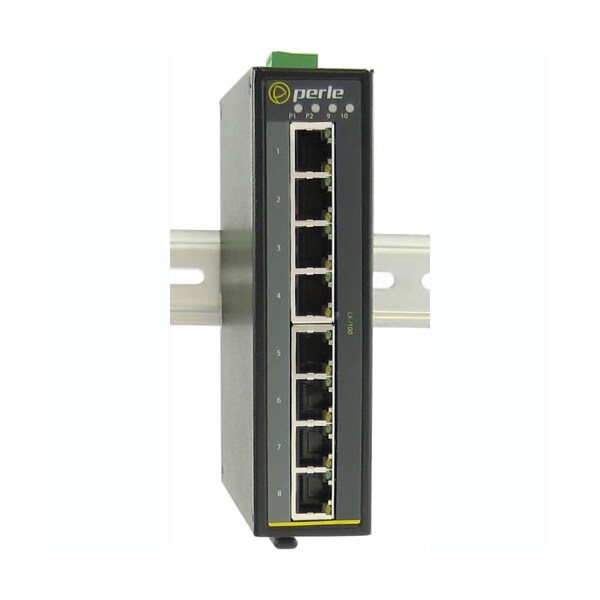

Perle Systems 108F-Ds2St80 Ethernet Switch 07010550

108F-Ds2St80 Ethernet Switch (Discontinued)

  • Mfr # 07010550
  • Zoro # G4418175
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010550
Zoro #
G4418175
UPC #
679202105501
Country of Origin
Taiwan, Province of China

Dimensions

Depth
5.4"
Height
1.4"
Width
4.4"

Details

Item
Ethernet Switch
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Mounting
Rail, Wall, Panel
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Power Source
Power Supply
Product Type
Ethernet Switch
USB
No
ST Port Type
Duplex
Green Environmental Attribute
Environmentally Friendly
Port/Expansion Slot Details
(10) Fast Ethernet Network
Fiber Mode Supported
Single-mode
Management Port
No
PoE (RJ-45) Port
No
Network Technology
100Base-EX, 10/100Base-TX
Media Type Supported
Optical Fiber, Twisted Pair
Uplink Port
No
Total Number of Network Ports
10
Ethernet Technology
Fast Ethernet
Number of Network (RJ-45) Ports
8
Number of ST Ports
2
Redundant Power Supply Supported
Yes
Stack Port
No
Manageable
No
MTBF
347577 Hour

Description

IDS-108F-DS2ST80 Industrial Switch: 8 x 10/100Base-TX RJ-45 ports and 2 x 100Base-EX, 1550nm single mode port with duplex ST connectors [80 km/ 49.7 miles ]. 0 to 60C operating temperature.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
