This item is Discontinued.

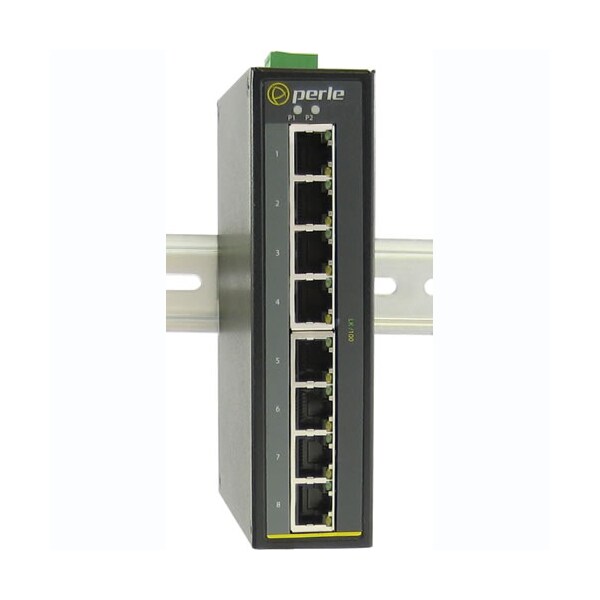

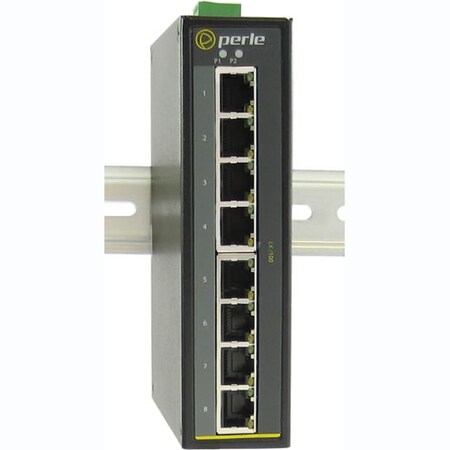

Perle Systems 108F-M1Sc2U Ethernet Switch 07010420

108F-M1Sc2U Ethernet Switch (Discontinued)

  • Mfr # 07010420
  • Zoro # G4418979
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010420
Zoro #
G4418979
UPC #
679202104207
Country of Origin
Taiwan, Province of China

Dimensions

Depth
4.4"
Width
5.4"
Height
1.4"

Details

Item
Ethernet Switch
Standards
IEEE Standards: 802.3, 802.3u, 802.3x Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Includes
Terminal Block, DIN Rail Attachment, Installation Guide
Mounting
Wall, Panel, Rail
Power Source
Power Supply
Product Type
Ethernet Switch
Fiber Mode Supported
Multi-mode
Network Technology
100Base-TX, 100Base-BX
Green Environmental Attribute
Environmentally Friendly
Uplink Port
No
Number of Network (RJ-45) Ports
8
MTBF
389062 Hour
Redundant Power Supply Supported
Yes
USB
Yes
Management Port
No
Media Type Supported
Optical Fiber, Twisted Pair
Ethernet Technology
Fast Ethernet
SC Port Type
Simplex
Port/Expansion Slot Details
(9) Fast Ethernet Network
PoE (RJ-45) Port
No
Number of SC Ports
1
Manageable
No
Total Number of Network Ports
9
Stack Port
No

Description

IDS-108F-M1SC2U Industrial Switch: 8 x 10/100Base-TX RJ-45 ports and 1 x 100Base-BX, 1310nm TX / 1550nm RX single strand multimode port with simplex (BIDI) SC connector [ up to 5km/3.1 miles ]. 0 to 60C operating temperature.
