This item is Discontinued.

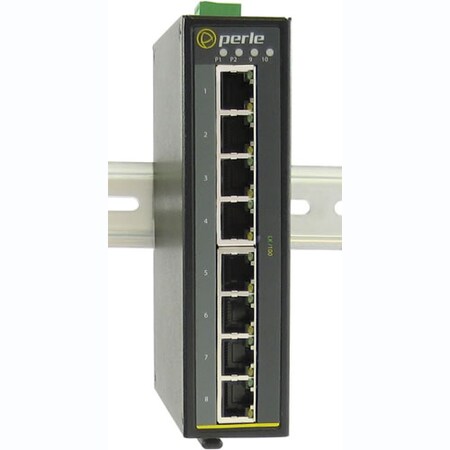

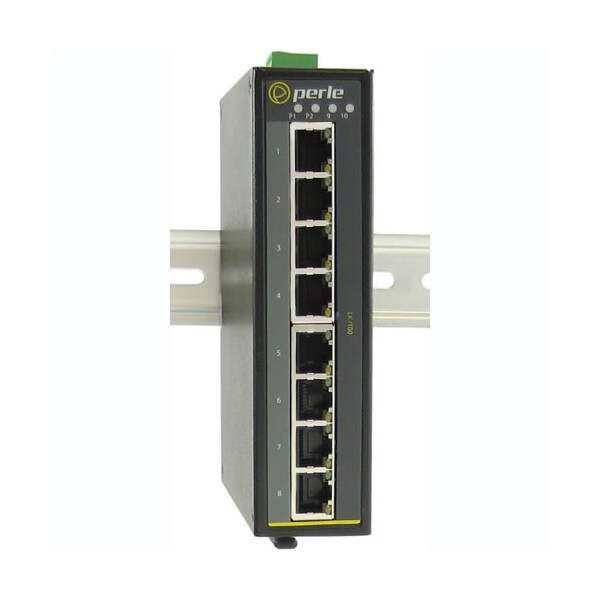

Perle Systems 108F-S2St20Xt Ethernet Switch 07010680

108F-S2St20Xt Ethernet Switch (Discontinued)

  • Mfr # 07010680
  • Zoro # G4419794
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07010680
Zoro #
G4419794
UPC #
679202106805
Country of Origin
Taiwan, Province of China

Dimensions

Height
5.4"
Width
1.4"
Depth
4.4"

Details

Item
Ethernet Switch
Mounting
Panel, Wall, Rail
Standards
UL508 (Safety standard for Industrial Control Equipment )IEEE Standards: 802.3, 802.3u, 802.3xSafety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial)Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments)Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050
Includes
DIN Rail Attachment, Terminal Block, Installation Guide
Product Type
Ethernet Switch
Power Source
Power Supply
Stack Port
No
Port/Expansion Slot Details
(9) Fast Ethernet Network
Manageable
No
Fiber Mode Supported
Single-mode
Number of Network (RJ-45) Ports
8
Network Technology
100Base-LX, 10/100Base-TX
Ethernet Technology
Fast Ethernet
PoE (RJ-45) Port
No
Total Number of Network Ports
9
Media Type Supported
Optical Fiber, Twisted Pair
ST Port Type
Duplex
MTBF
389062 Hour
Number of ST Ports
1
Management Port
No
Uplink Port
No
Green Environmental Attribute
Environmentally Friendly
Redundant Power Supply Supported
Yes
USB
No

Description

IDS-108F-S2ST20-XT Industrial Switch: 8 x 10/100Base-TX RJ-45 ports and 1 x 100Base-LX, 1310nm single mode port with duplex ST connector [20 km/ 12.4 miles ]. -40 to 75C industrial extended operating temperature.
