Shop PERLE SYSTEMS

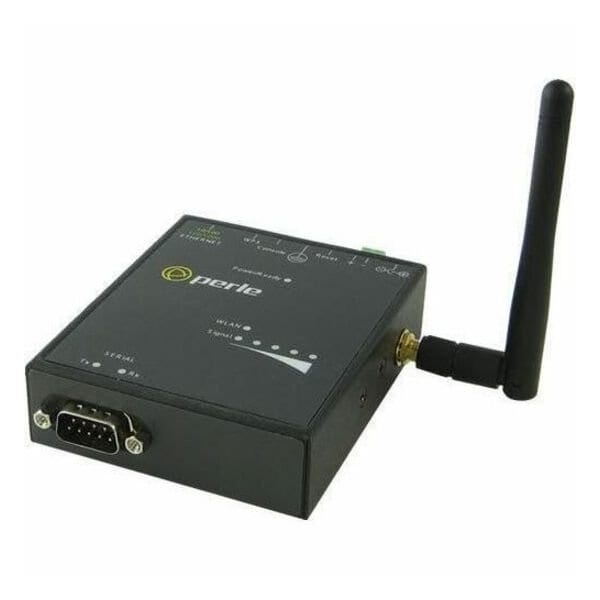

1PORT WL DEVICE SVR RS232 /422/485 DB9M SDS1 W 802.11 A/B/G/N

  • Mfr # 04031664
  • Zoro # G4407578
product price:
$
768.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12 V DC, 24 V DC
Interface Ports
Software selectable EIA232/422/485 on DB9M
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Ethernet Technology
Gigabit Ethernet
Height
3"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
04031664
Zoro #
G4407578
UPC #
734660316644
Country of Origin
Canada
Item
Device Server
Input Voltage
12 V DC, 24 V DC
Interface Ports
Software selectable EIA232/422/485 on DB9M
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Ethernet Technology
Gigabit Ethernet
Management Port
Yes
Media Type Supported
Twisted Pair
Connectivity Technology
Wireless
Serial Port
Yes
Wireless LAN Standard
IEEE 802.11a/b/g/n
Network Standard
10/100/1000Base-T
Network Band
Dual Band
Processor Speed
600 MHz
Power Consumption
3.96 W
Standard Memory
512 MB
UNII Band
Yes
Minimum Operating Temperature
-40°F (-40°C)
Wireless LAN
Yes
Data Link Protocols
UDP, TCP
Mount Type
DIN Rail Mountable, Wall Mountable, Panel-mountable
Maximum Operating Temperature
167°F (75°C)
Ingress Protection (IP) Rating
IP40
ISM Band
Yes
Product Line
IOLAN
Input Voltage Range
9 V DC - 30 V DC

Description

IOLAN SDG1 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC power adapter included
