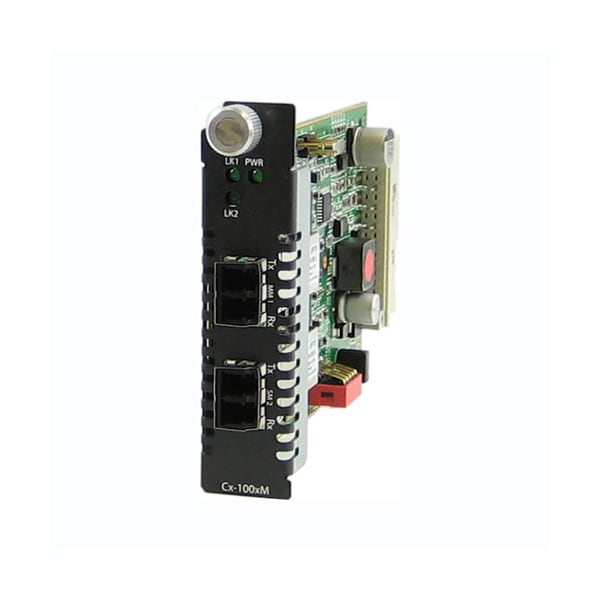

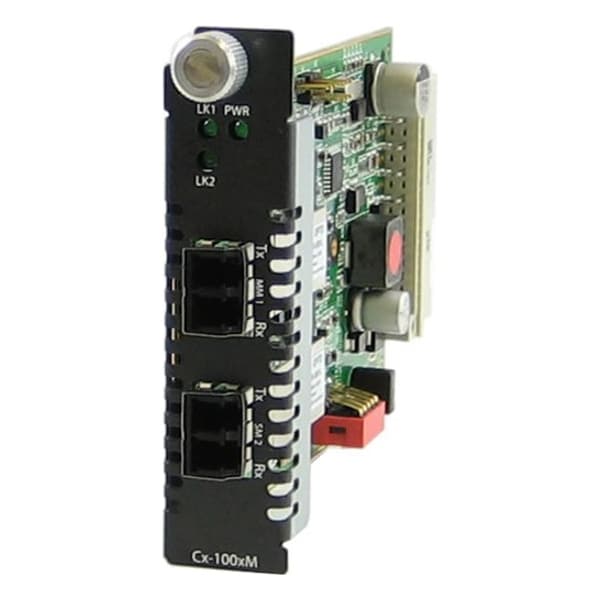

C-1000Mm-S2Lc120 Media Convert

Mfr # 05061320
Zoro # G4391846

$4,219.99

Free Shipping & Returns

Key Features

Network Technology

1000Base-SX, 1000Base-ZX

Environmentally Friendly

Yes

Fiber Optic Cable Standard

62.5/125 µm, 50/125 µm

Maximum Distance Supported

74.56 Mile

Product Type

Transceiver/Media Converter

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05061320

Zoro #

G4391846

UPC #

734660613200

Country of Origin

Canada

Details

Network Technology

1000Base-SX, 1000Base-ZX

Environmentally Friendly

Yes

Fiber Optic Cable Standard

62.5/125 µm, 50/125 µm

Maximum Distance Supported

74.56 Mile

Product Type

Transceiver/Media Converter

Total Number of Ports

LC Port Type

Duplex

Compatibility

Perle MCR1900 Media Converter Chassis

Weight (Approximate)

5.28 oz

Form Factor

Internal

Product Name

C-1000MM-S2LC120 Media Convert

Number of LC Ports

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Card insertion and removal

Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Auto-Negotiation

Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface

Laser Safety

EN 60825-1:2007

Heat Output ( BTU/HR )

8.53

Emissions

FCC Part 15 Class A, EN55022 Class A

Operating Humidity

5% to 90% non-condensing

1000Base-X

Multimode dual LC to single mode dual LC fiber connector model; Available in SC, ST and LC connector models

Operating temperature

0° C to 50° C (32° F to 122° F)

Immunity

EN55024

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Electrical Safety

UL 60950-1

Edge Connecter

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power

Operating Altitude

Up to 3,048 meters (10,000 feet)

Fiber Fault Alert

Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.

Storage Humidity

5% to 95% non-condensing

Bit Error Rate (BER)

<10-12

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Maximum Power Consumption ( Watts )

2.5

Description

C-1000MM-S2LC120 - Gigabit Fiber to Fiber Media Converter Module: 1000BASE-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000BASE-ZX 1550 nm single mode (LC) [120 km/74.6 miles]

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
