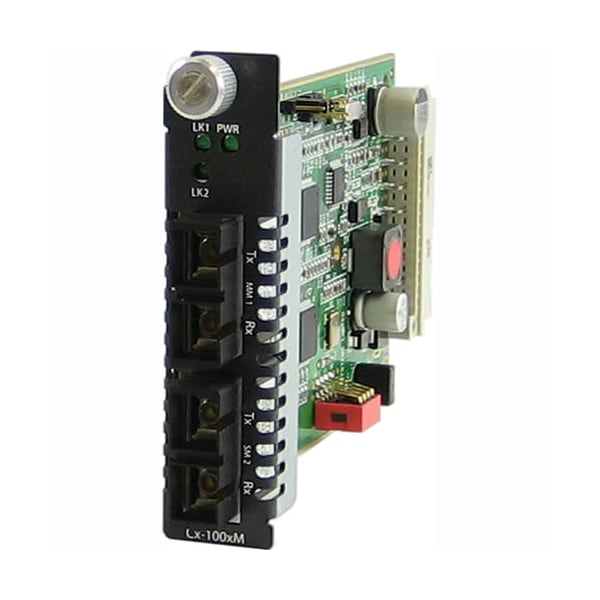

Perle Systems C-1000Mm-S2Sc10 Media Convertr 05061220 - main

C-1000Mm-S2Sc10 Media Convertr

  • Mfr # 05061220

  • Zoro # G4415007

product price:  $1,069.99
/ea
Free Shipping & Returns

Key Features

Product Type
Transceiver/Media Converter
Total Number of Ports
2
SC Port Type
Duplex
Environmentally Friendly
Yes
Maximum Distance Supported
6.21 Mile
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
05061220
Zoro #
G4415007
UPC #
734660612203
Country of Origin
Canada

Details

Product Type
Transceiver/Media Converter
Total Number of Ports
2
SC Port Type
Duplex
Environmentally Friendly
Yes
Maximum Distance Supported
6.21 Mile
Network Technology
1000Base-LH, 1000Base-LX, 1000Base-SX
Fiber Optic Cable Standard
62.5/125 µm, 50/125 µm
Form Factor
Internal
Number of SC Ports
2
Weight (Approximate)
5.28 oz
Compatibility
Perle MCR1900 Media Converter Chassis
Product Name
C-1000MM-S2SC10 Media Converter
1000Base-X
Multimode dual ST to single mode dual ST fiber connector model; Available in SC, ST and LC connector models
Fiber link 1 / Receive activity (LK1)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Storage Humidity
5% to 95% non-condensing
Remote Loopback #1
The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface
Bit Error Rate (BER)
<10-12
Emissions
FCC Part 15 Class A, EN55022 Class A
Power / TST
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
Operating temperature
0° C to 50° C (32° F to 122° F)
Immunity
EN55024
Remote Loopback #2
The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface
Edge Connecter
32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
Card insertion and removal
Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Fiber Fault Alert
Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.
Heat Output ( BTU/HR )
8.53
Operating Humidity
5% to 90% non-condensing
Electrical Safety
UL 60950-1
Auto-Negotiation
Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.
Operating Altitude
Up to 3,048 meters (10,000 feet)
Storage temperature
minimum range of -25° C to 70° C (-13° F to 158° F)
Fiber link 2 on / Receive activity (LK2)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Maximum Power Consumption ( Watts )
2.5
Laser Safety
EN 60825-1:2007

Description

C-1000MM-S2SC10 - Gigabit Fiber to Fiber Media Converter Module: 1000BASE-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000BASE-LX/LH 1310 nm single mode (SC) [10 km/6.2 miles]

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
