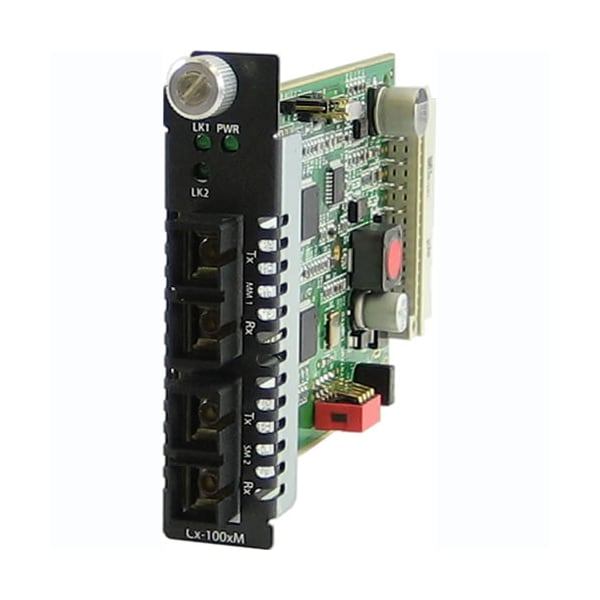

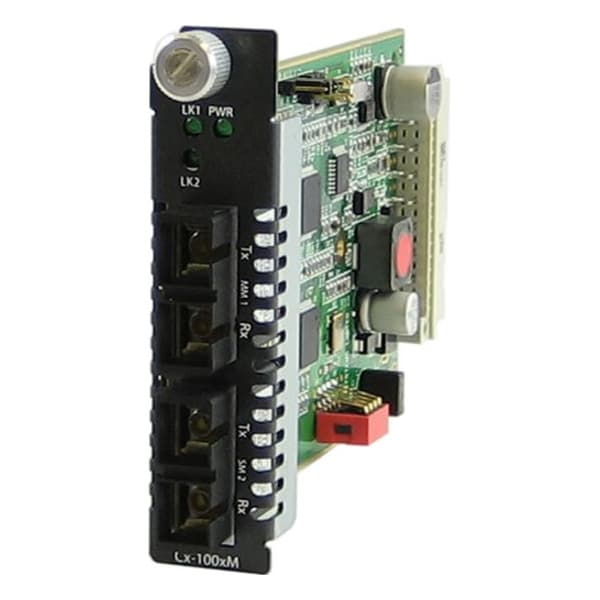

Perle Systems C-1000Mm-S2Sc40 Media Convertr 05061250 - main

C-1000Mm-S2Sc40 Media Convertr

  • Mfr # 05061250

  • Zoro # G4399029

product price: $1,838.99
/ea
Free Shipping & Returns

Key Features

1000Base-X
Multimode dual SC to single mode dual SC fiber connector model; Available in SC, ST and LC connector models
Power / TST
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
Emissions
FCC Part 15 Class A, EN55022 Class A
Fiber Fault Alert
Laser Safety
EN 60825-1:2007
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
05061250
Zoro #
G4399029
UPC #
734660612500
Country of Origin
Canada

Details

1000Base-X
Multimode dual SC to single mode dual SC fiber connector model; Available in SC, ST and LC connector models
Power / TST
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
Emissions
FCC Part 15 Class A, EN55022 Class A
Fiber Fault Alert
Laser Safety
EN 60825-1:2007
Storage Humidity
5% to 95% non-condensing
Maximum Power Consumption ( Watts )
2.5
Fiber link 2 on / Receive activity (LK2)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Remote Loopback #1
The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface
Heat Output ( BTU/HR )
8.53
Operating Humidity
5% to 90% non-condensing
Card insertion and removal
Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Immunity
EN55024
Storage temperature
minimum range of -25° C to 70° C (-13° F to 158° F)
Operating Altitude
Up to 3,048 meters (10,000 feet)
Electrical Safety
UL 60950-1
Operating temperature
0° C to 50° C (32° F to 122° F)
Edge Connecter
32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
Fiber link 1 / Receive activity (LK1)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Bit Error Rate (BER)
<10-12
Remote Loopback #2
The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface
Auto-Negotiation

Description

C-1000MM-S2SC40 - Gigabit Fiber to Fiber Media Converter Module: 1000BASE-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000BASE-EX 1310 nm single mode (SC) [40 km/24.9 miles].
